Audio System_Navigation: Notes

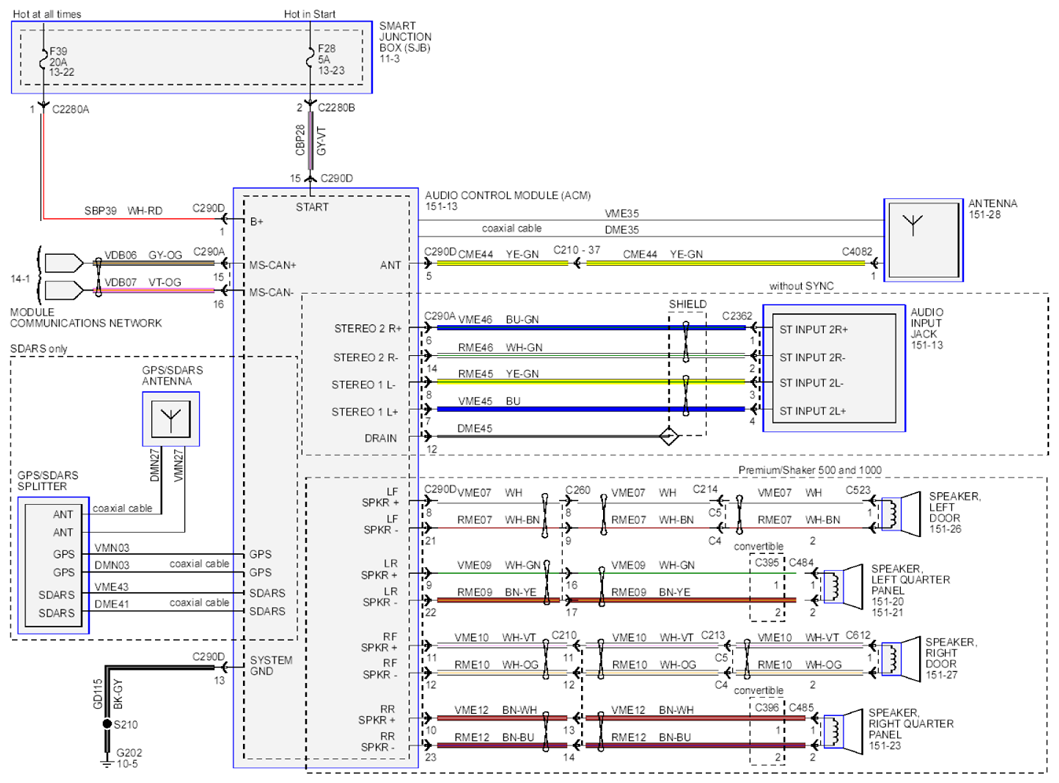

Fig 1: Audio System Navigation Circuit Diagram

G07881244

Courtesy of FORD MOTOR CO.
