Selector Lever Cable And Bracket: Installation

All vehicles

1. Install the selector lever cable bracket and 2 bolts.
   • Tighten to 25 Nm (18 lb-ft).
   Fig 1: Locating Selector Lever Cable Bracket Bolts

   Courtesy of FORD MOTOR CO.
2. Install the selector lever cable.
   Fig 2: Installing Selector Lever Cable Into Selector Lever Cable Bracket

   Courtesy of FORD MOTOR CO.
   1. Install the selector lever cable into the selector lever cable bracket.
   2. Connect the selector lever cable to the manual control lever.
3. Attach the cable routing retainer to the transmission case.

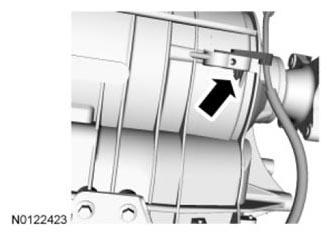

   Fig 3: Locating Cable Routing Retainer Of Transmission Case

   Courtesy of FORD MOTOR CO.

   Vehicles equipped with a 5.0L (4V) engine

4. Attach the CMS  connector to the cable routing retainer.

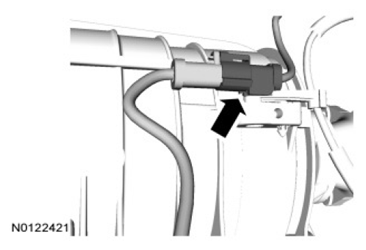

   Fig 4: Locating Catalyst Monitor Sensor Connector

   Courtesy of FORD MOTOR CO.

   All vehicles

NOTE: It is necessary to install a new plastic selector lever cable retaining clip prior to installation.
Fig 5: Locating Selector Lever Cable Retaining Clip
Courtesy of FORD MOTOR CO.
5. Install the selector lever cable into the selector lever cable bracket.
6. Connect the selector lever cable to the selector lever.

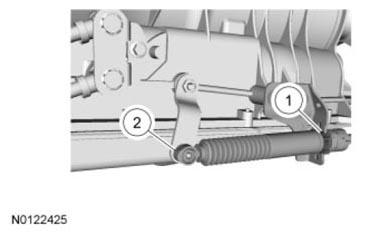

   Fig 6: Locating Selector Lever Cable

   Courtesy of FORD MOTOR CO.
7. Adjust the selector lever cable. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT  in this service information.
