Low/Reverse Clutch Assembly: Disassembly

NOTE: The low/reverse clutch plate quantity is model dependent on engine size. Check the clutch plate quantity charts in specifications for the correct clutch plate quantity. Failure to install the correct clutch plate quantity will result in transmission failure.

NOTE: The low/reverse clutch plates are installed in the case during the transmission assembly procedure.

Using the Clutch Spring Compressor, remove and discard the low/reverse clutch return spring retainer.

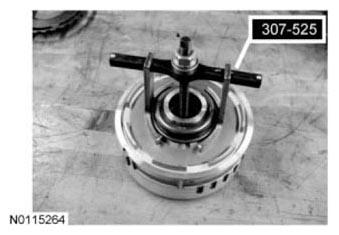

Fig 1: Removing Low/Reverse Clutch Return Spring Retainer Using Special Tool
Courtesy of FORD MOTOR CO.
Remove and discard the low/reverse clutch return spring retainer.

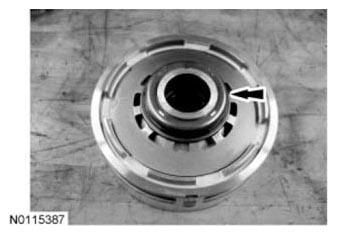

Fig 2: Locating Low/Reverse Clutch Return Spring Retainer
Courtesy of FORD MOTOR CO.
Remove the low/reverse clutch return spring.

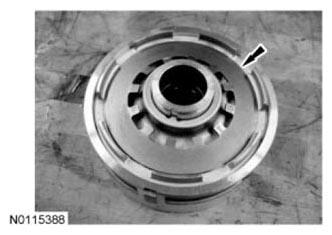

Fig 3: Locating Low/Reverse Clutch Return Spring
Courtesy of FORD MOTOR CO.
Apply a slight amount of air to the port, remove the low/reverse clutch piston from the low/reverse clutch drum.

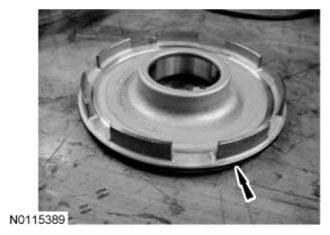

Fig 4: Locating Low/Reverse Clutch Piston And Low/Reverse Clutch Drum
Courtesy of FORD MOTOR CO.
Remove and discard the low/reverse outer piston O-ring seal.

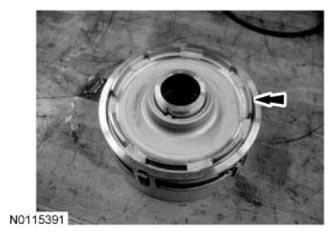

Fig 5: Locating Low/Reverse Outer Piston O-Ring Seal
Courtesy of FORD MOTOR CO.
Remove and discard the low/reverse drum O-ring seal.

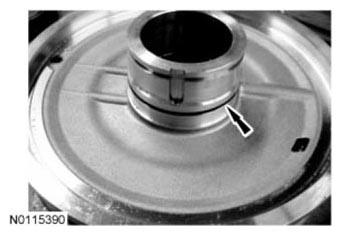

Fig 6: Locating Low/Reverse Drum O-Ring Seal
Courtesy of FORD MOTOR CO.
