Molded Leadframe: Notes

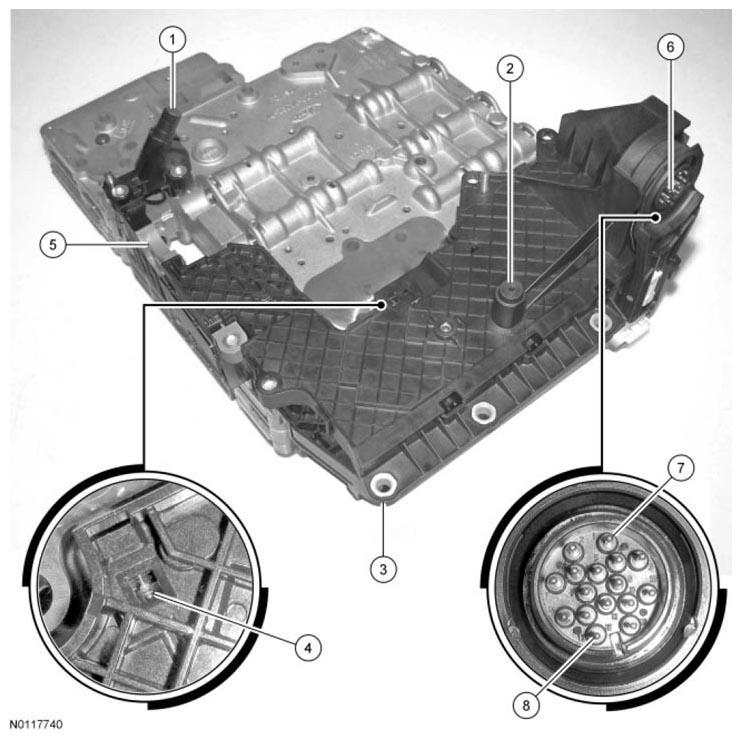

Fig 1: Identifying Molded Leadframe Components
G07475848Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - Turbine Shaft Speed (TSS) sensor
2 - Output Shaft Speed (OSS) sensor 3 7G276 Molded leadframe
4 - Transmission Fluid Temperature (TFT) sensor
5 - Transmission Range (TR) sensor
6 - Leadframe connector
7 - Terminal 1
8 - Terminal 16
