Transmission Shift Selector Connector - C307

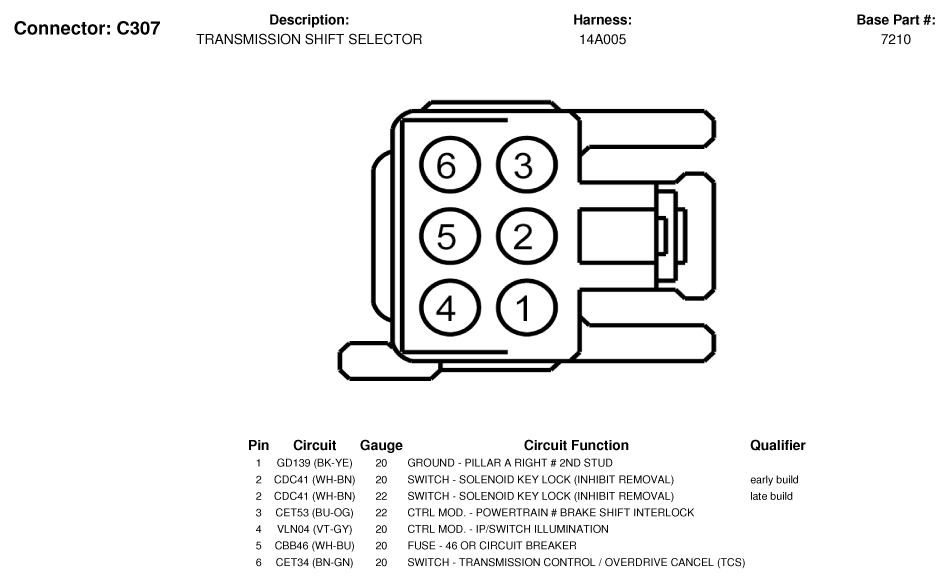

Fig 1: Transmission Shift Selector Connector End View (C307)

G07336581

Courtesy of FORD MOTOR CO.
