Right Front Subwoofer Connector - C628

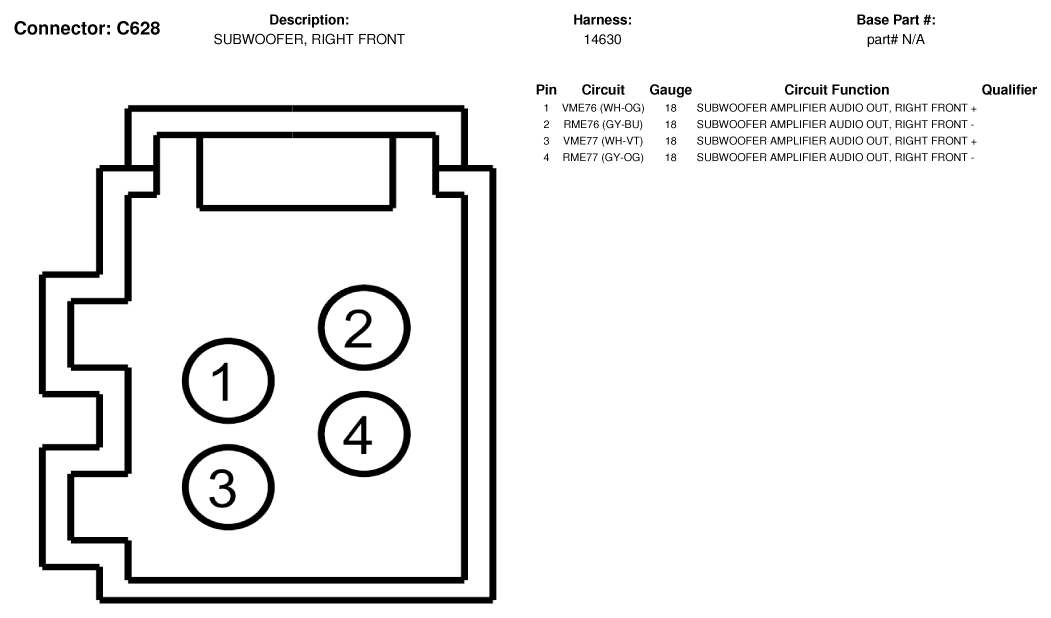

Fig 1: Right Front Subwoofer Connector End View (C628)

G07336633

Courtesy of FORD MOTOR CO.
