Right Front Fog Lamp Connector

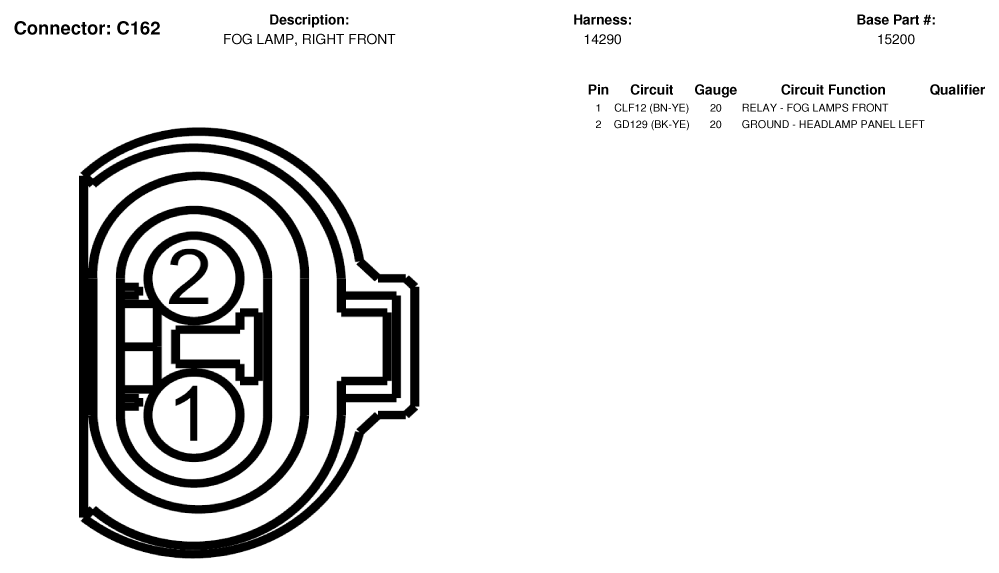

Fig 1: Right Front Fog Lamp Connector End View (C162)
G07336514Courtesy of FORD MOTOR CO.

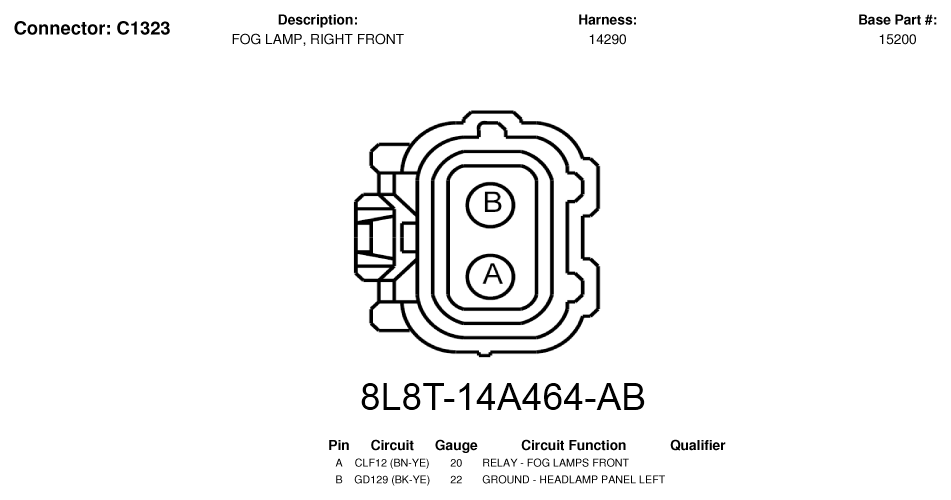

Fig 2: Right Front Fog Lamp Connector End View (C1323)
G07336670Courtesy of FORD MOTOR CO.

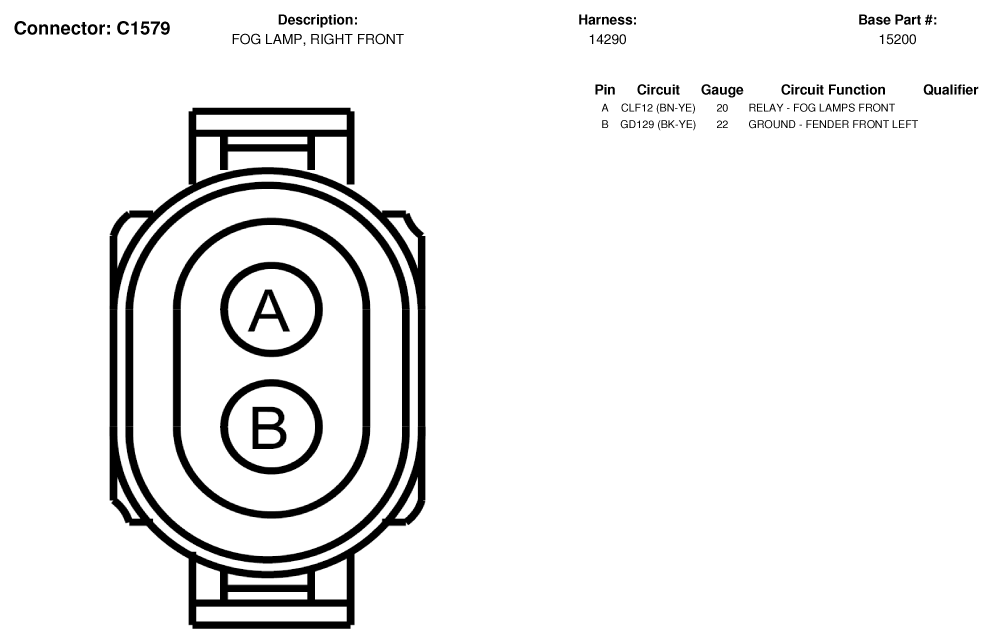

Fig 3: Right Front Fog Lamp Connector End View (C1579)
G07336697Courtesy of FORD MOTOR CO.
