Passenger Air Bag Module Connectors - C256

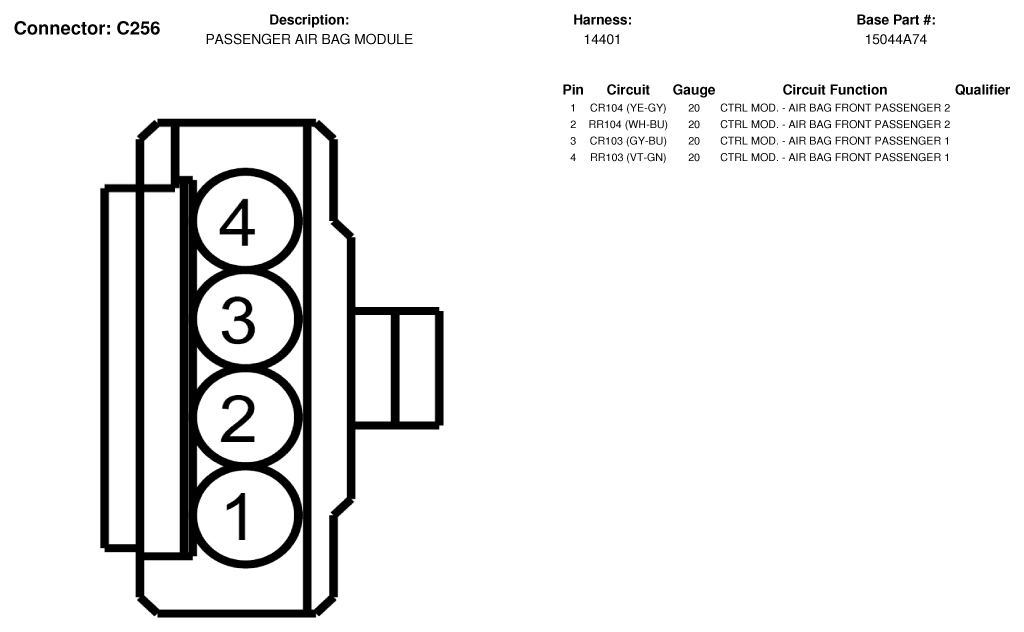

Fig 1: Passenger Air Bag Module Connector End View (C256)

G07336561

Courtesy of FORD MOTOR CO.
