Master Window Adjust Switch Connector - C504

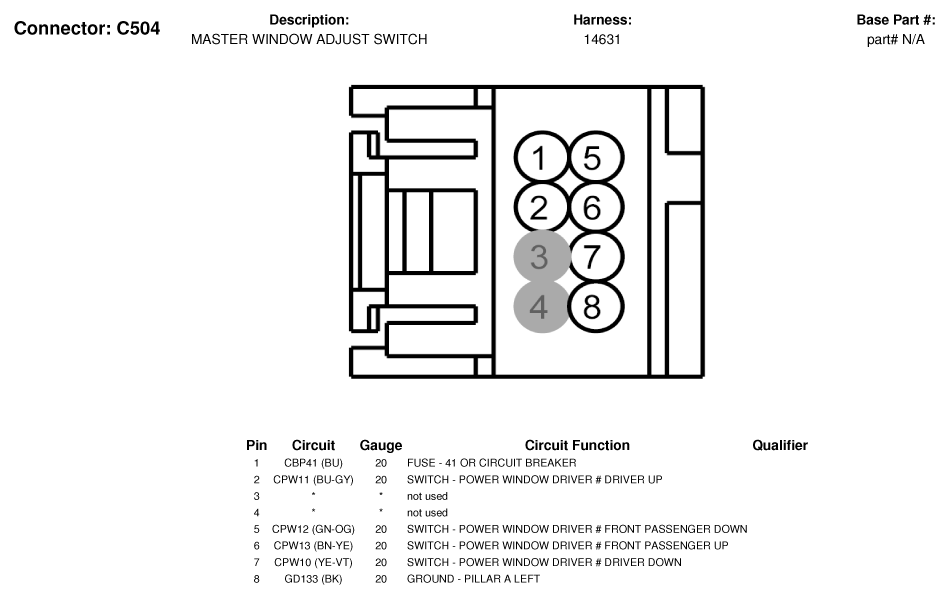

Fig 1: Master Window Adjust Switch Connector End View (C504)

G07336618

Courtesy of FORD MOTOR CO.
