Low Oil Level Switch Connector - C1149
Low Oil Level Switch Connector - C1149

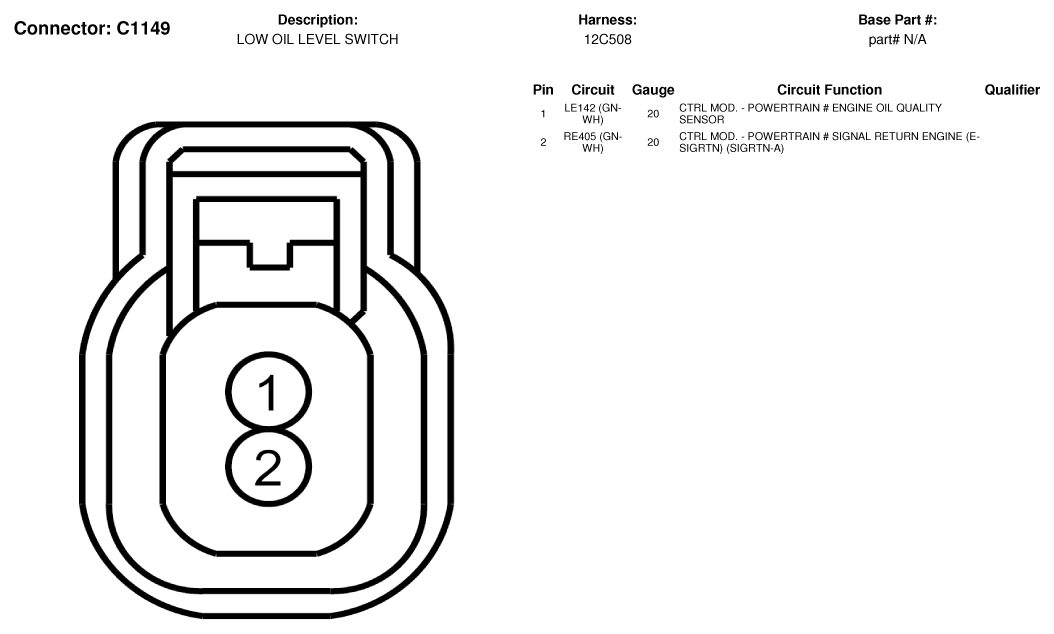

Fig 1: Low Oil Level Switch Connector End View (C1149)
Courtesy of FORD MOTOR CO.
