Left Front Subwoofer Connector - C536

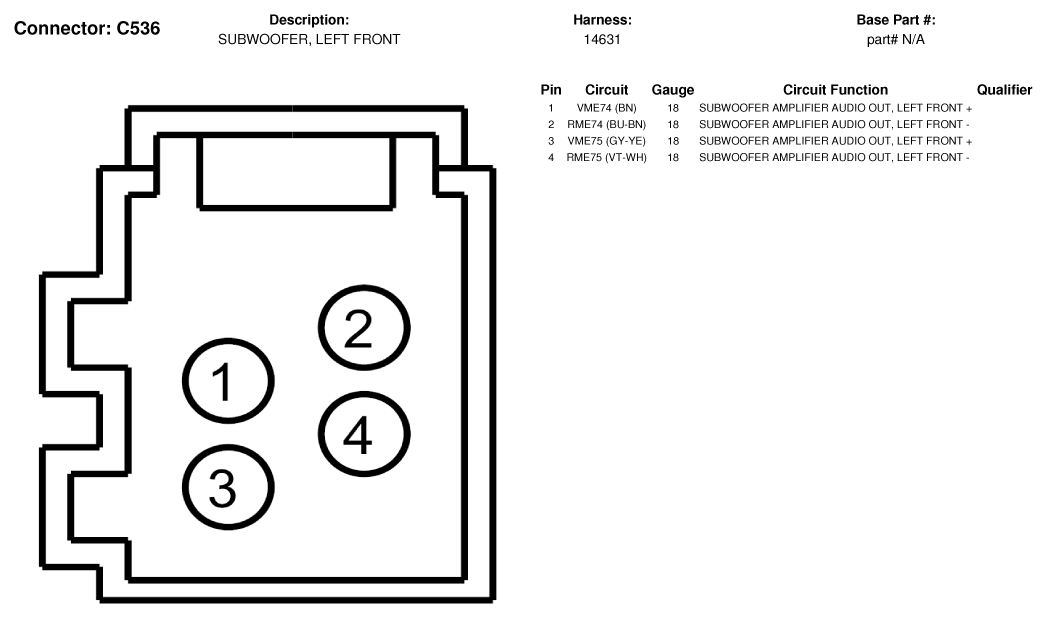

Fig 1: Left Front Subwoofer Connector End View (C536)

G07336624

Courtesy of FORD MOTOR CO.
