Left Front Power Window Motor Connector - C518
Left Front Power Window Motor Connector - C518

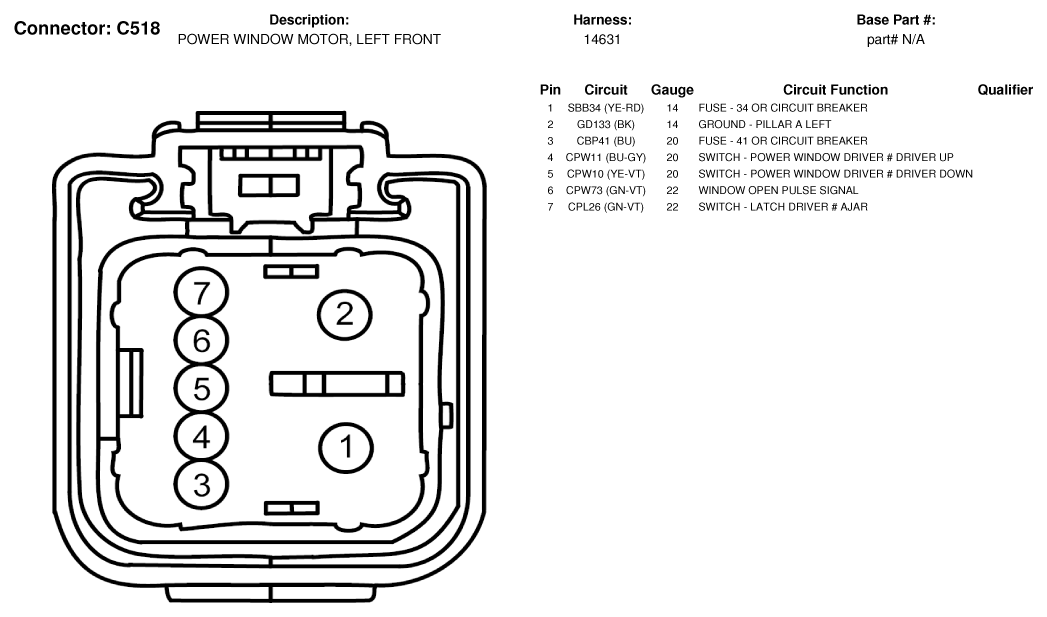

Fig 1: Left Front Power Window Motor Connector End View (C518)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
