Intake Air Temperature 2 Sensor Connector - C1236

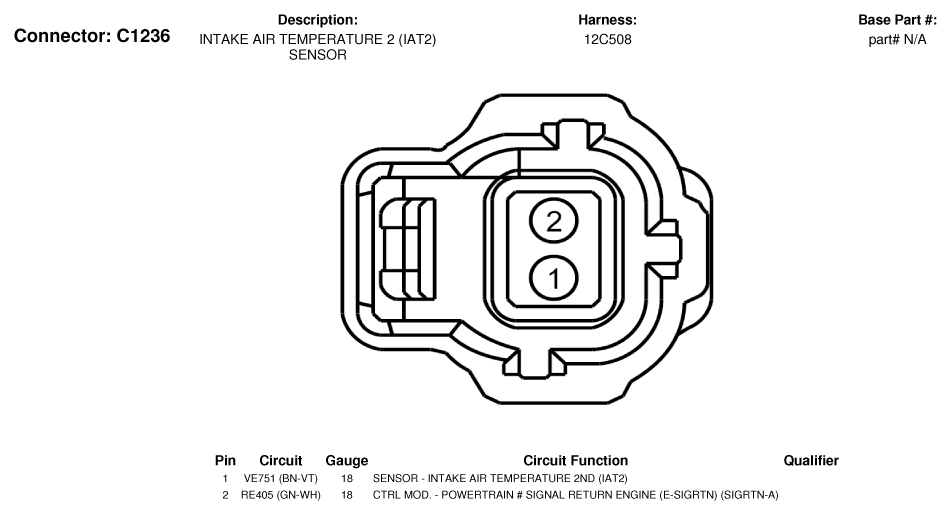

Fig 1: Intake Air Temperature 2 Sensor Connector End View (C1236)

G07336665

Courtesy of FORD MOTOR CO.
