Fuel Tank Pressure Sensor Connector - C435
Fuel Tank Pressure Sensor Connector - C435

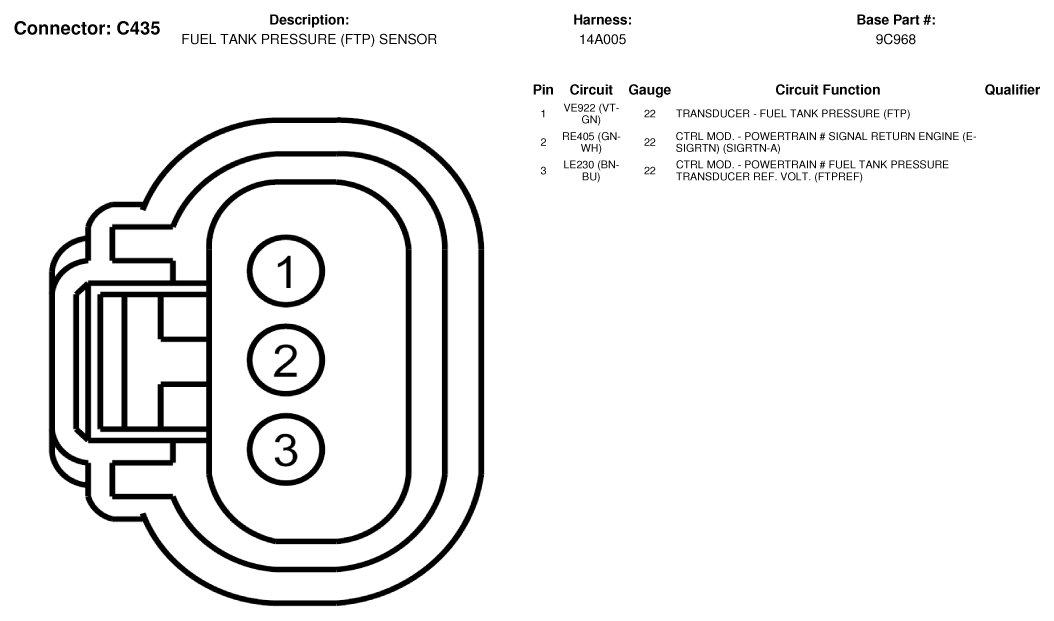

Fig 1: Fuel Tank Pressure Sensor Connector End View (C435)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
