Engine Coolant Temperature Sensor Connector - C1064

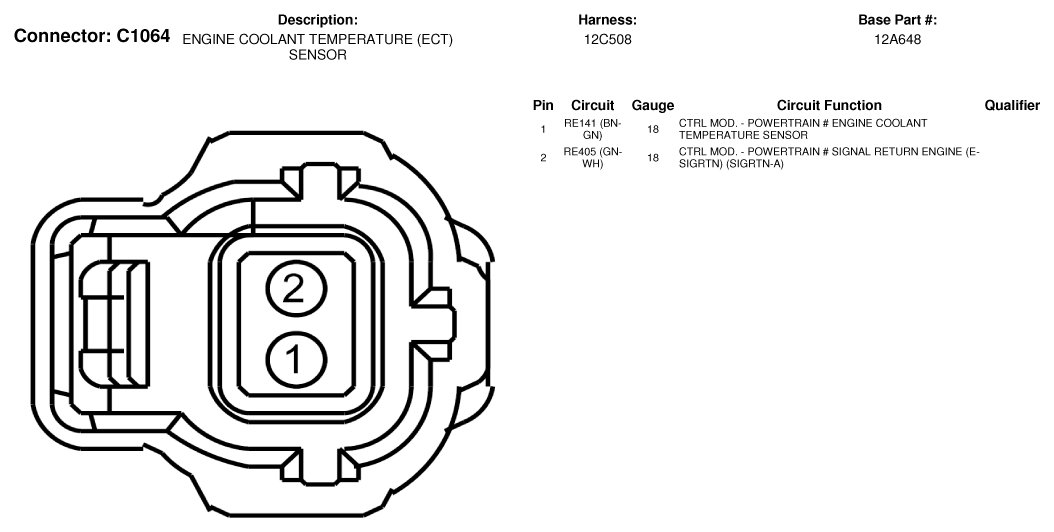

Fig 1: Engine Coolant Temperature Sensor Connector End View (C1064)

G07336649

Courtesy of FORD MOTOR CO.
