Electronic Throttle Control Motor Connector - C1368

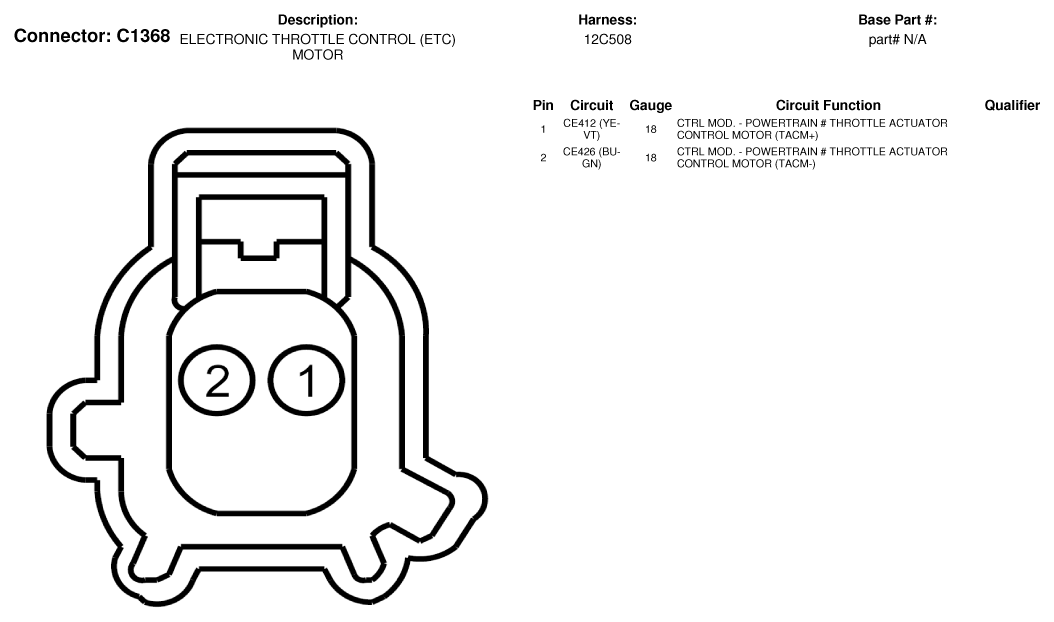

Fig 1: Electronic Throttle Control Motor Connector End View (C1368)

G07336675

Courtesy of FORD MOTOR CO.
