Driver Map Pocket Lamp Connector - C572
Driver Map Pocket Lamp Connector - C572

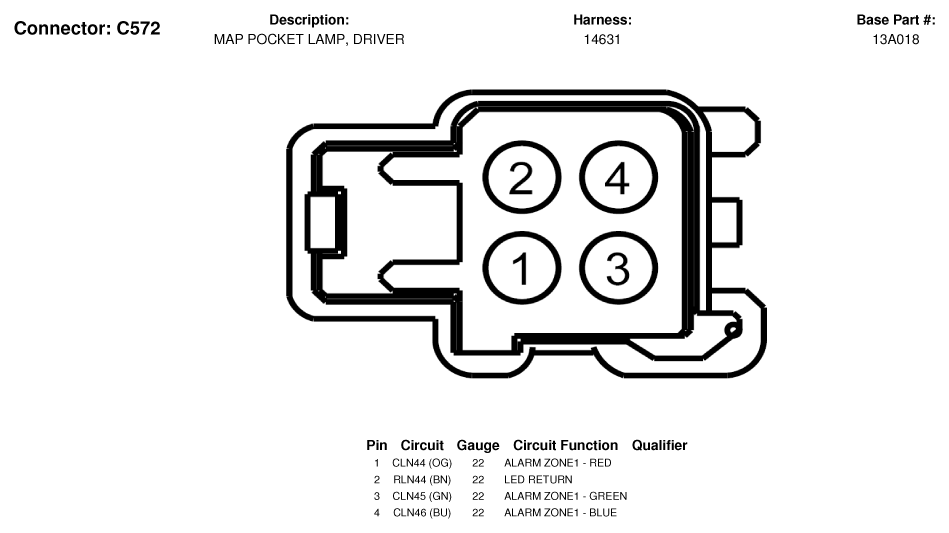

Fig 1: Driver Map Pocket Lamp Connector End View (C572)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
