Blower Motor Speed Control Connector - C2185

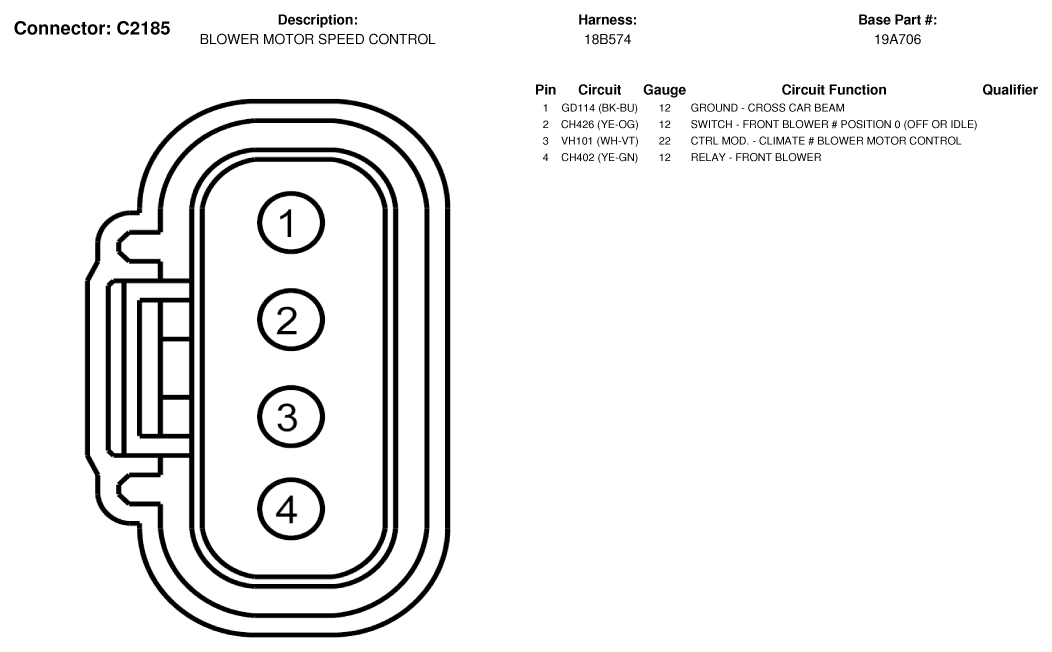

Fig 1: Blower Motor Speed Control Connector End View (C2185)

G07336731

Courtesy of FORD MOTOR CO.
