Output Shaft Speed (OSS) Sensor: Notes

WARNING: This page is about a different variant/trim than selected.

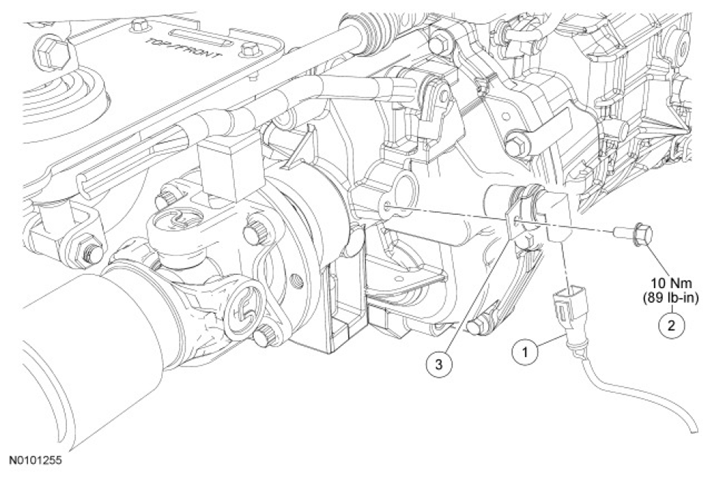

Fig 1: Output Shaft Speed Sensor Replacement Components With Torque Specifications
G07488903Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - Output Shaft Speed (OSS) sensor electrical connector
2 - OSS  sensor bolt
3 - OSS  sensor
