Gearshift Lever Exploded View

WARNING: This page is about a different variant/trim than selected.
Fig 1: Exploded View Of Gearshift Lever Components With Torque Specifications
G07488895Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 7213 Gearshift lever knob
2 7277 Gearshift lever boot
3 7210 Upper gearshift lever
4 W707137 Gearshift lever shield nuts
5 W505424 Gearshift lever shield bolts
6 7277 Gearshift lever shield
7 - Upper gearshift lever bolts
8 7400 Gearshift lever assembly
9 7314 Gearshift lever retainers
10 W500324 Gearshift lever bolt
  1. Remove the upper gearshift lever knob and position the floor console finish panel aside.
    • Turn the upper gearshift lever knob in a counterclockwise direction.
    Fig 2: View Of Upper Gearshift Lever Knob And Floor Console Finish Panel
    G07488896Courtesy of FORD MOTOR CO.
  2. Remove the upper gearshift lever bolts and the upper gearshift lever.
    • To install, tighten to 35 Nm (26 lb-ft).
    Fig 3: Remove/Install Upper Gearshift Lever Bolts
    G07488897Courtesy of FORD MOTOR CO.
  3. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  4. Remove the 4 subframe cross brace bolts and the subframe cross brace.
    • To install, tighten to 48 Nm (35 lb-ft).

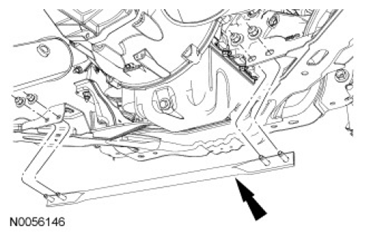

    Fig 4: Remove/Install Subframe Cross Brace With Bolts
    G07488898Courtesy of FORD MOTOR CO.
  5. Using a suitable transmission jack, support the transmission.
  6. Remove the 4 rear transmission crossmember bolts.
    • To install, tighten to 63 Nm (46 lb-ft).

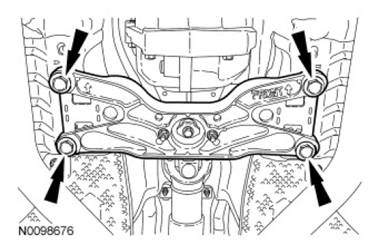

    Fig 5: Locating Rear Transmission Crossmember Bolts
    G07488899Courtesy of FORD MOTOR CO.
  7. Remove the driveshaft. For additional information, refer to DRIVESHAFT article.
  8. Lower the transmission enough to access the gearshift lever nuts.
  9. Remove the 2 rear gearshift lever nuts.
    • To install, tighten to 11 Nm (97 lb-in).

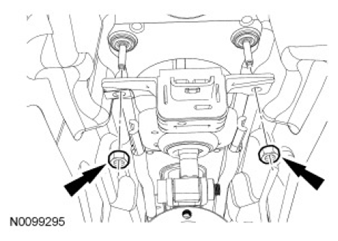

    Fig 6: Remove/Install Rear Gearshift Lever Nuts
    G07488900Courtesy of FORD MOTOR CO.
  10. Remove the gearshift lever assembly.
    1. Insert a pick into the lower hole to unlock the clip.
    2. Rotate the gearshift lever retainers, then remove the retainers.
    3. Remove the gearshift lever bolt.

      To install, tighten to 40 Nm (30 lb-ft).

    4. Remove the gearshift lever assembly from the vehicle.

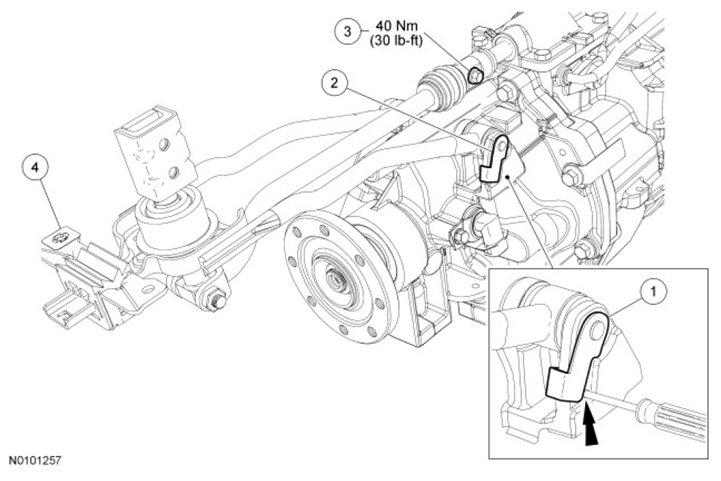

    Fig 7: Gearshift Lever Assembly Replacement Components With Torque Specifications
    G07488901Courtesy of FORD MOTOR CO.
  11. To install, reverse the removal procedure.
    • Make sure to snap the gearshift lever retainers into the locked position.
    • Carefully position the gearshift lever into the lower shift boot. Make sure the lever is through the boot.

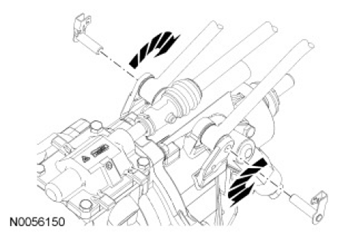

    Fig 8: Positioning Gearshift Lever Into Lower Shift Boot
    G07488902Courtesy of FORD MOTOR CO.
