Center Console Lamp Assembly Connector - C3349

WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

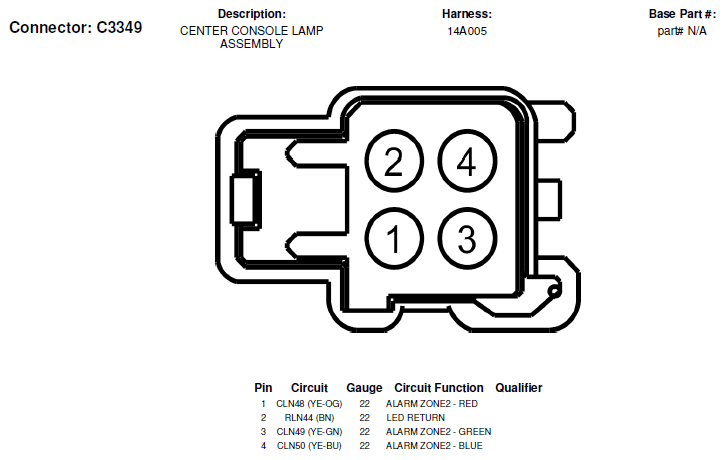

Fig 1: Center Console Lamp Assembly Connector End View (C3349)
G06374855Courtesy of FORD MOTOR CO.
