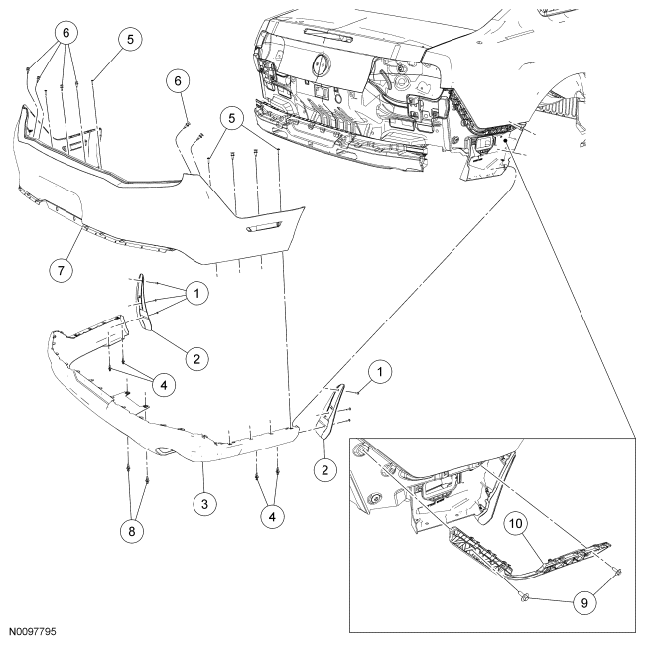

Bumper - Exploded View, Rear
WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Base vehicle and GT shown in illustration, Shelby GT 500 similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W712919 | Mudflap screws (6 required) |
| 2 | 16A550-AA RH/16A550-AB LH | Mudflaps |
| 3 | 17F954 | Rear bumper cover lower valence |
| 4 | W709984 | Rear bumper cover lower valence-to-rear bumper cover pin-type retainers |
| 5 | W712919 | Rear bumper cover-to-rear bumper cover lower valence screws (4 required) |
| 6 | W705436 | Rear bumper cover-to-rear bumper cover lower valence pin-type retainers (8 required) |
| 7 | 17D781 | Rear bumper cover |
| 8 | - | Rear bumper cover lower valence W-base clips (part of 17F954) |
| 9 | W611103 | Rear bumper cover bracket screws |
| 10 | 17D942-A RH/17D942-B LH | Rear bumper cover dog leg bracket |
- For additional information, refer to the appropriate procedures .
