Block Heater: Material
WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Premium Gold Engine Coolant with Bittering Agent (bittered in US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) |
WSS-M97B51-A1 |
NOTE:
V6 engine shown, V8 engine similar.

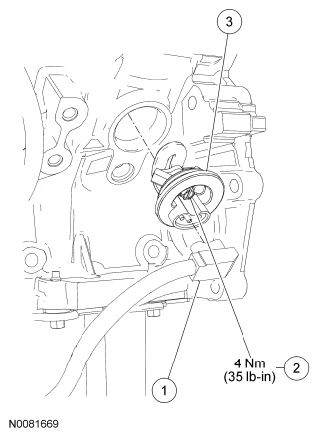

Fig 1: Block Heater Electrical Connector, Block Heater Retaining Screw And Block Heater With Torque Specifications
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6B019 | Block heater electrical connector |
| 2 | 6A051 | Block heater retaining screw |
| 3 | 6A051 | Block heater |
