Fog Lamp: Notes

WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

4.0L Vehicles

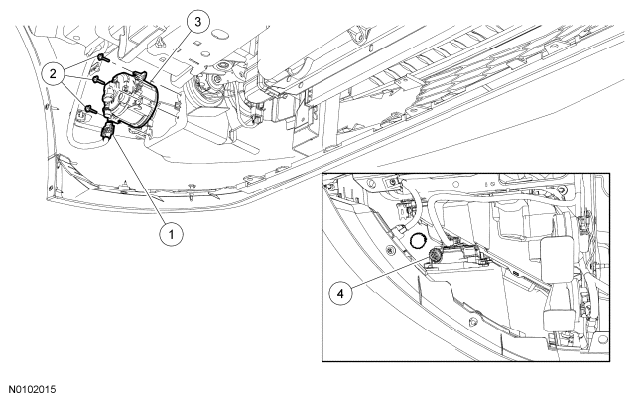

Fig 1: Identifying Fog Lamp With Mounting Screws, Adjustment Screws And Electrical Connector
G06403838Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Fog lamp electrical connector (part of 14290)
2 W707607 Fog lamp mounting screws (3 required)
3 15200 Fog lamp
4 - Fog lamp adjustment screw

4.6L Vehicles

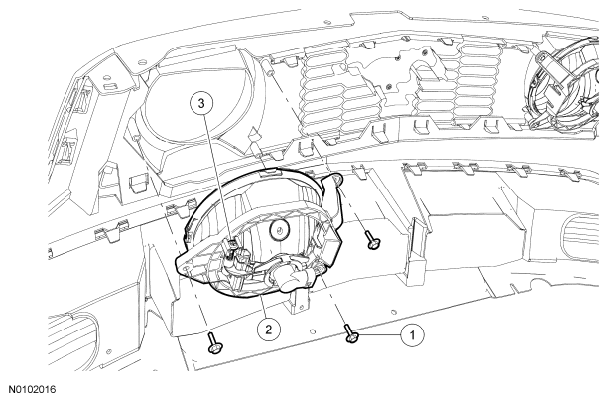

Fig 2: Identifying Fog Lamp With Mounting Screws And Adjustment Screws
G06403839Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W707607 Fog lamp mounting screws (3 required)
2 15200 Fog lamp
3 - Fog lamp adjustment screw

5.4L Vehicles

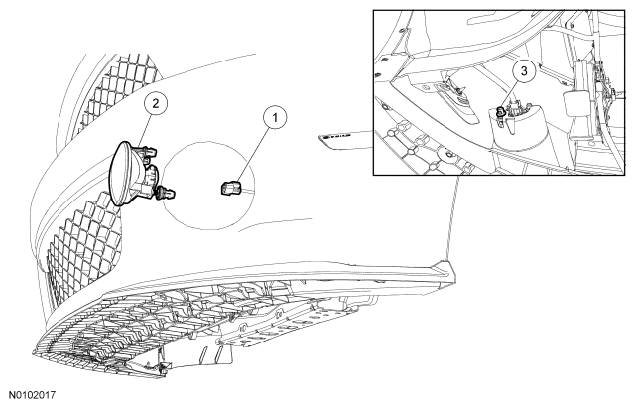

Fig 3: Identifying Fog Lamp With Adjustment Screws And Electrical Connector
G06403840Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Fog lamp electrical connector (part of 14290)
2 15200 Fog lamp
3 - Fog lamp adjustment screw
