Fog Lamp Bulb: Notes

WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

4.0L Vehicles

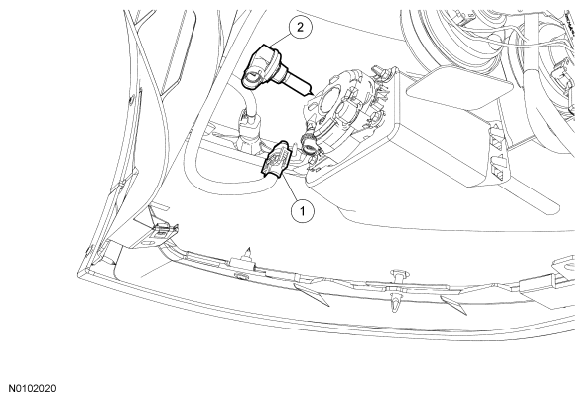

Fig 1: Identifying Fog Lamp Bulb And Electrical Connector - 4.0L Vehicles
G06403843Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Fog lamp bulb electrical connector (part of 14290)
2 13N021 Fog lamp bulb

4.6L Vehicles

NOTE: The front bumper cover shown in illustration, is removed for clarity.

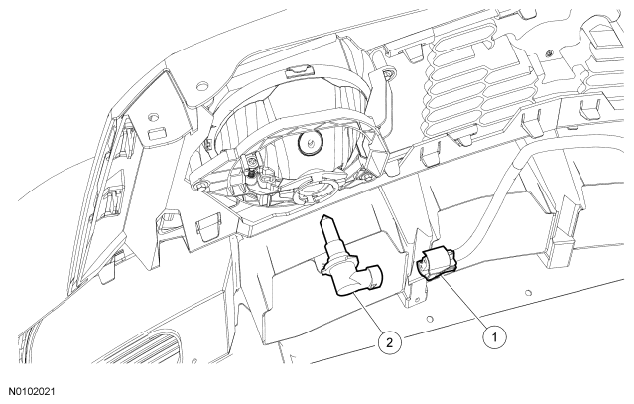

Fig 2: Identifying Fog Lamp Bulb And Electrical Connector - 4.6L Vehicles
G06403844Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Fog lamp bulb electrical connector (part of 14290)
2 13466 Fog lamp bulb

5.4L Vehicles

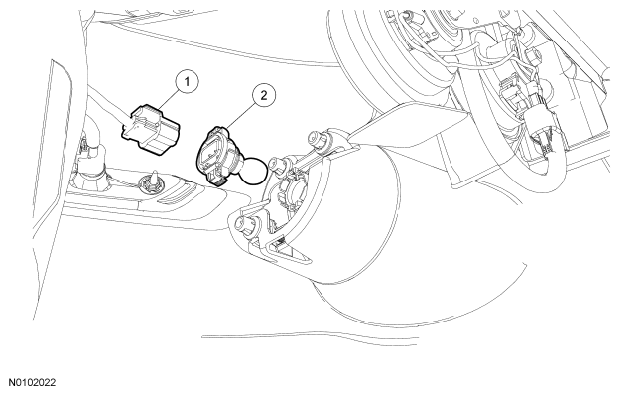

Fig 3: Identifying Fog Lamp Bulb And Electrical Connector - 5.4L Vehicles
G06403845Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Fog lamp bulb electrical connector (part of 14290)
2 13N021 Fog lamp bulb
