Windshield Washer Pump Motor Connector

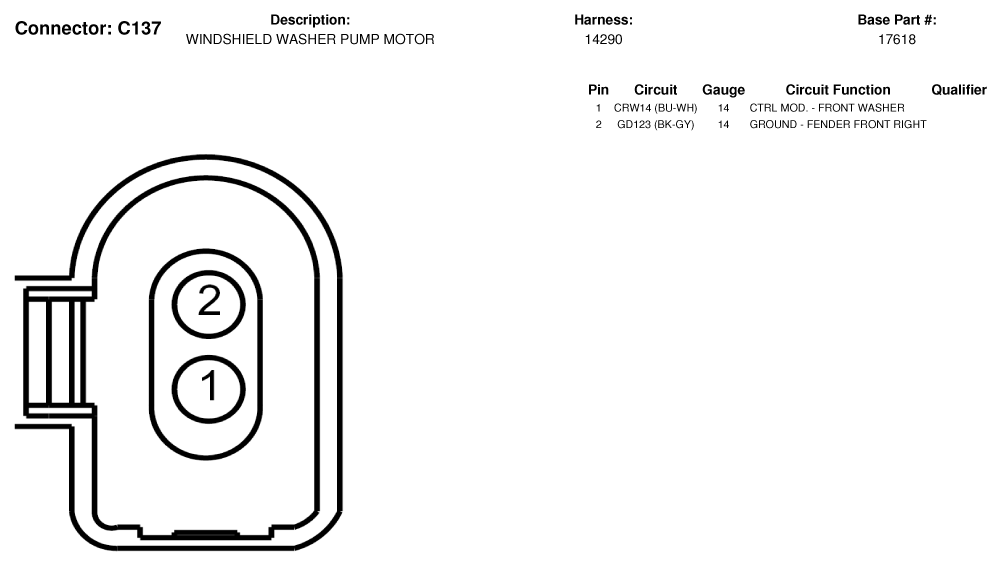

Fig 1: Windshield Washer Pump Motor Connector End View (C137)

G07336505

Courtesy of FORD MOTOR CO.
