Vehicle Dynamic Systems

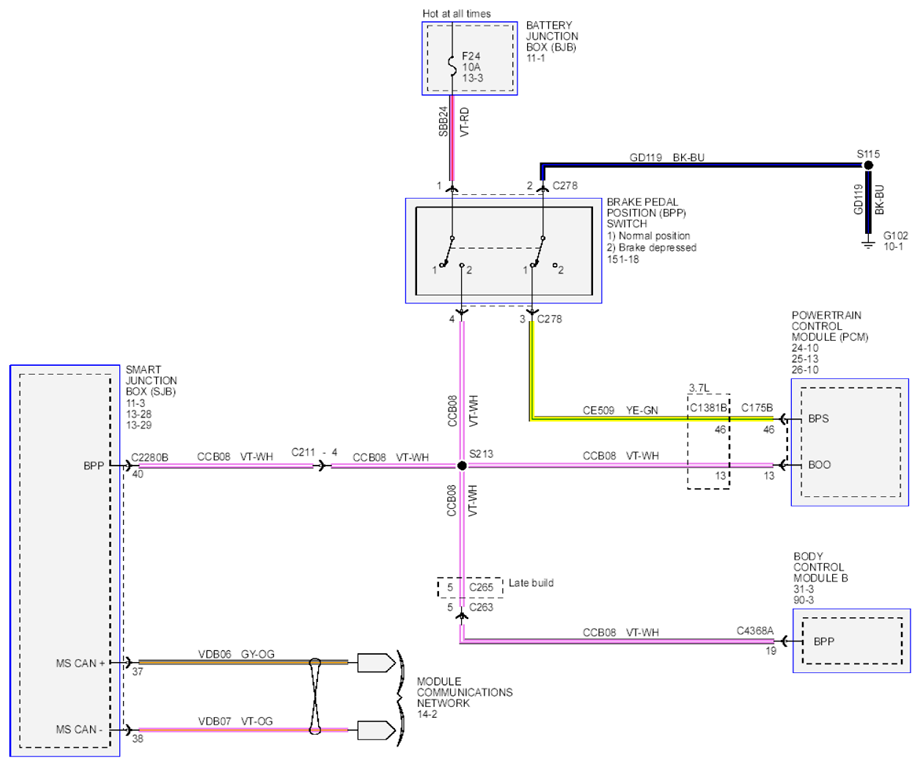

Fig 1: Vehicle Dynamic Systems Circuit Diagram (1 Of 5)

Courtesy of FORD MOTOR CO.

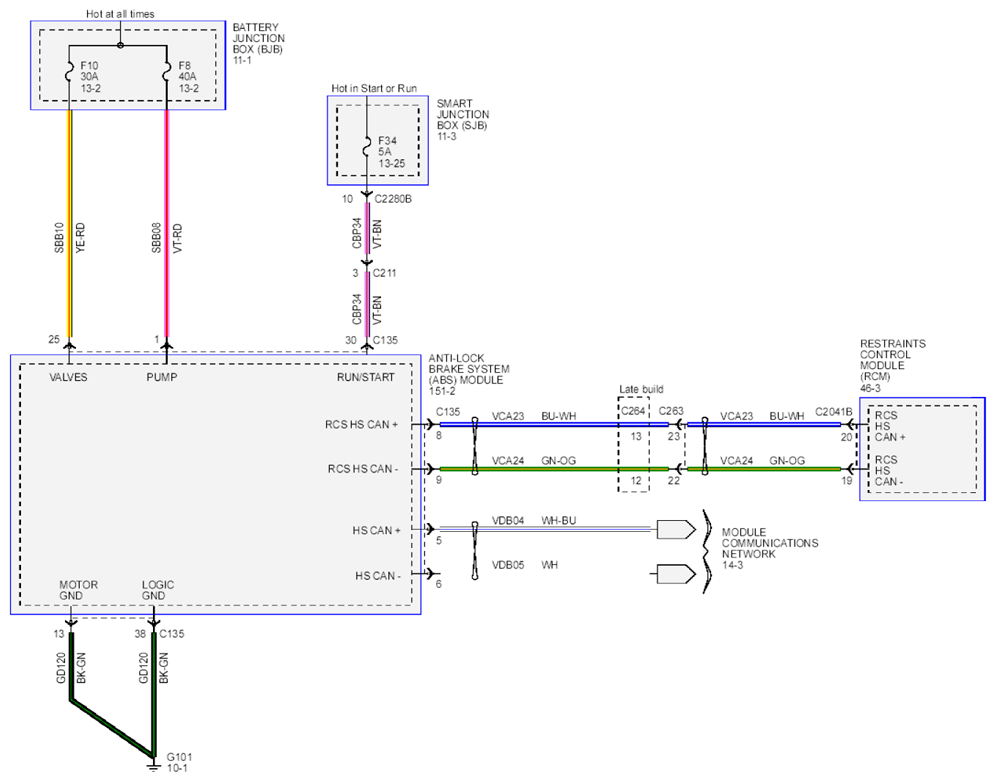

Fig 2: Vehicle Dynamic Systems Circuit Diagram (2 Of 5)

Courtesy of FORD MOTOR CO.

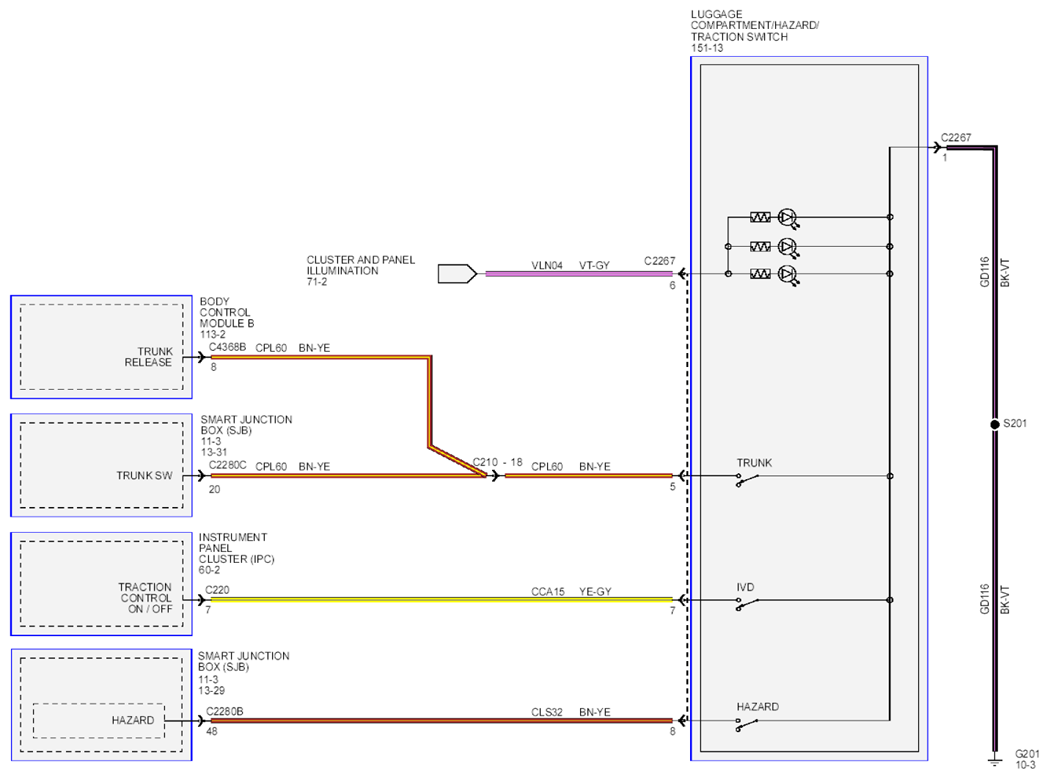

Fig 3: Vehicle Dynamic Systems Circuit Diagram (3 Of 5)

Courtesy of FORD MOTOR CO.

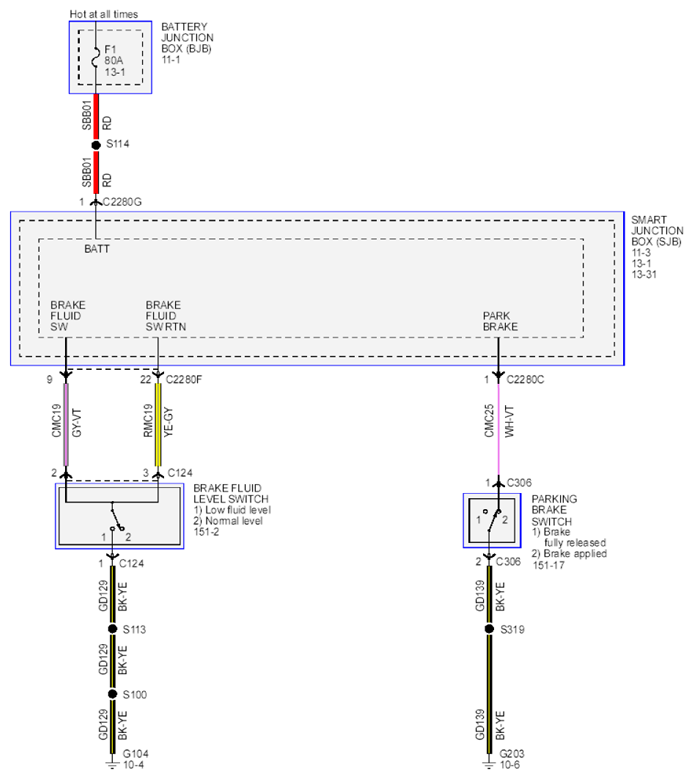

Fig 4: Vehicle Dynamic Systems Circuit Diagram (4 Of 5)

Courtesy of FORD MOTOR CO.

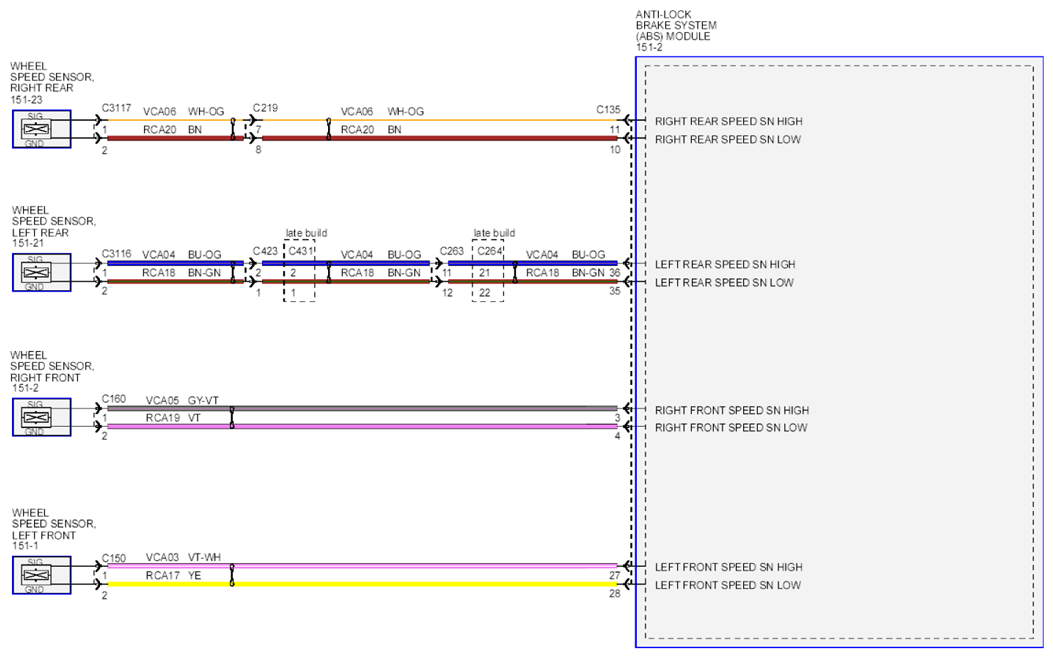

Fig 5: Vehicle Dynamic Systems Circuit Diagram (5 Of 5)

Courtesy of FORD MOTOR CO.
