Shift Interlock
Shift Interlock

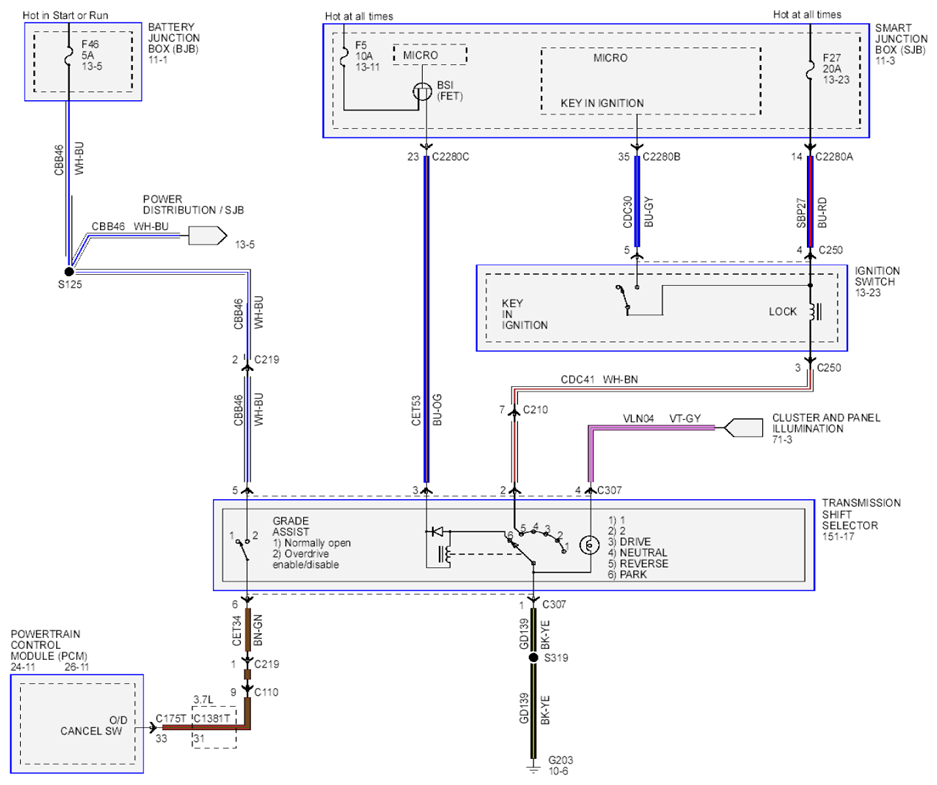

Fig 1: Shift Interlock Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
