Notes
Power Windows: Notes
Fig 1: Power Windows Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

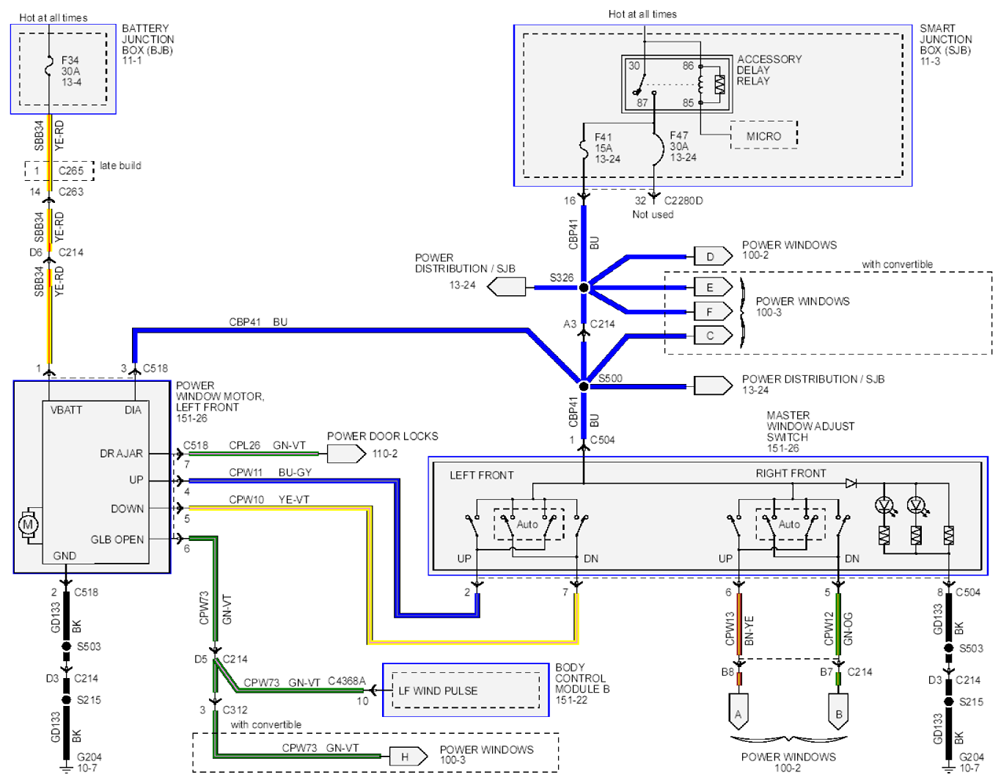

Fig 2: Power Windows Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
