Power Distribution_SJB: F6

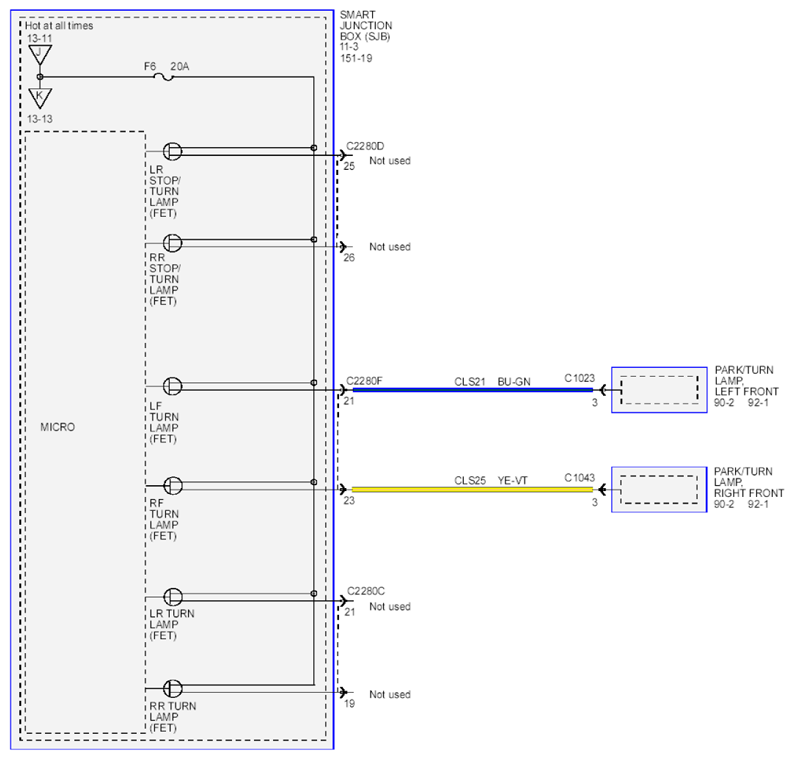

Fig 1: Power Distribution Circuit Diagram - F6

G07881101

Courtesy of FORD MOTOR CO.
