Power Distribution_SJB: F25

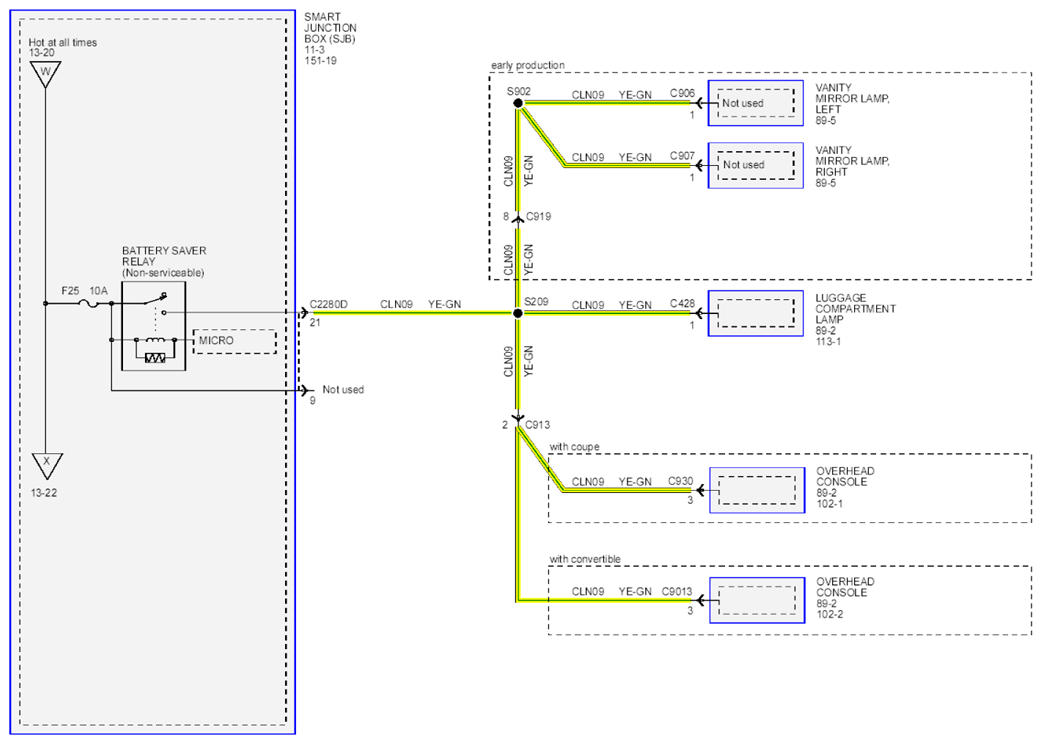

Fig 1: Power Distribution Circuit Diagram - F25

G07881110

Courtesy of FORD MOTOR CO.
