Power Distribution_SJB: F22

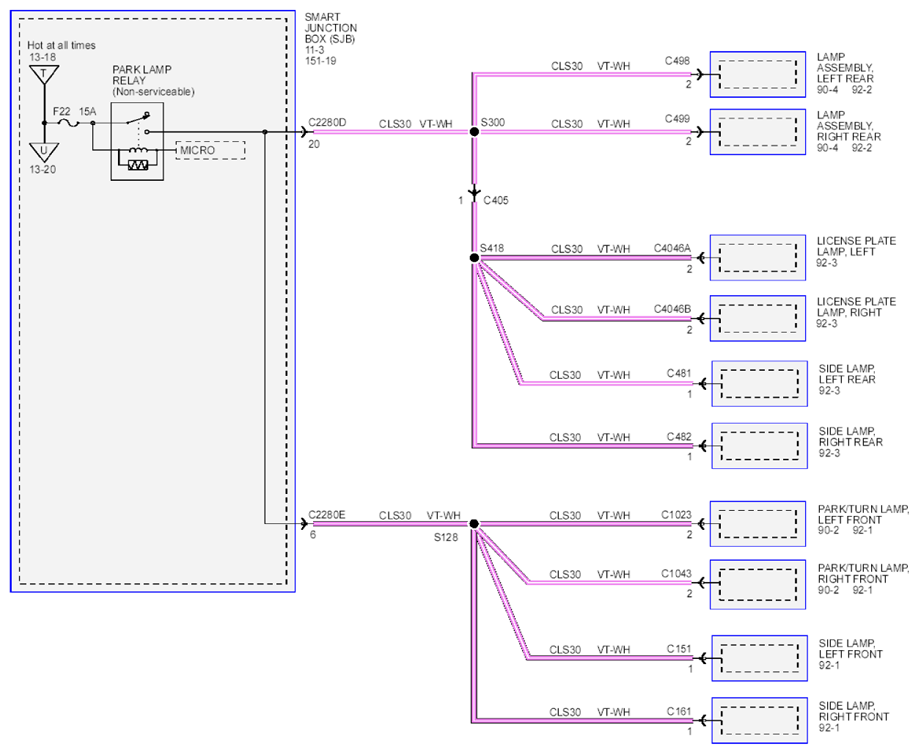

Fig 1: Power Distribution Circuit Diagram - F22

G07881108

Courtesy of FORD MOTOR CO.
