Power Distribution_SJB: F17

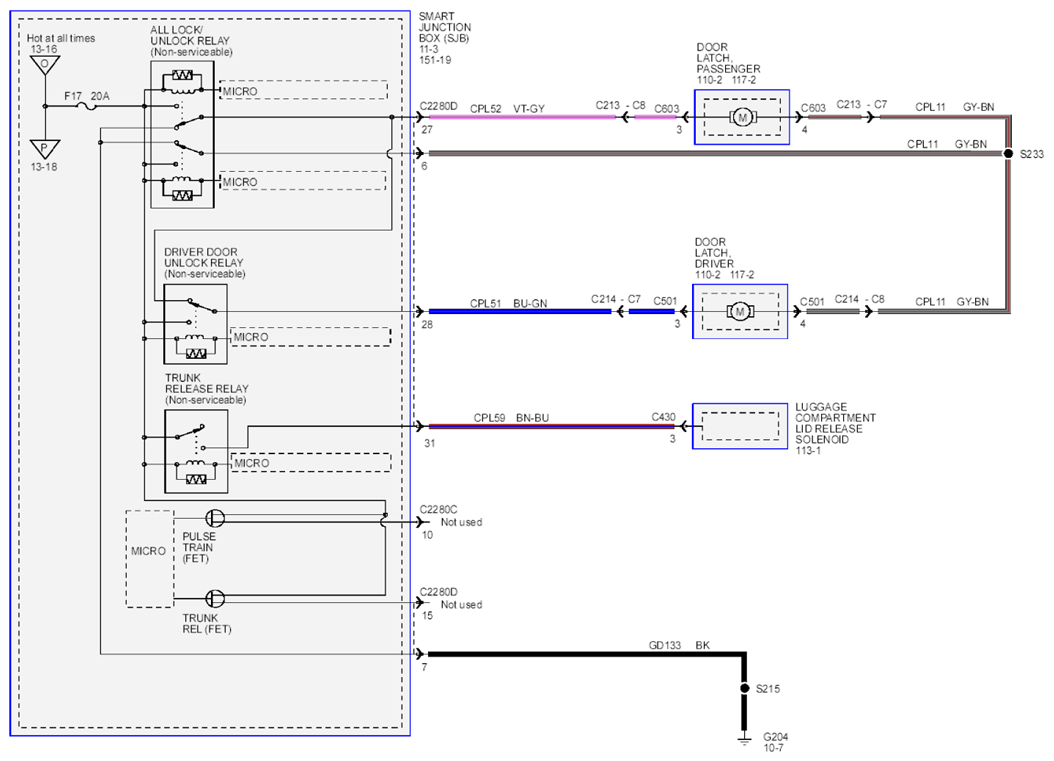

Fig 1: Power Distribution Circuit Diagram - F17

G07881106

Courtesy of FORD MOTOR CO.
