Mustang Base, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Power Distribution_SJB
>>
70
Power Distribution_SJB: 70

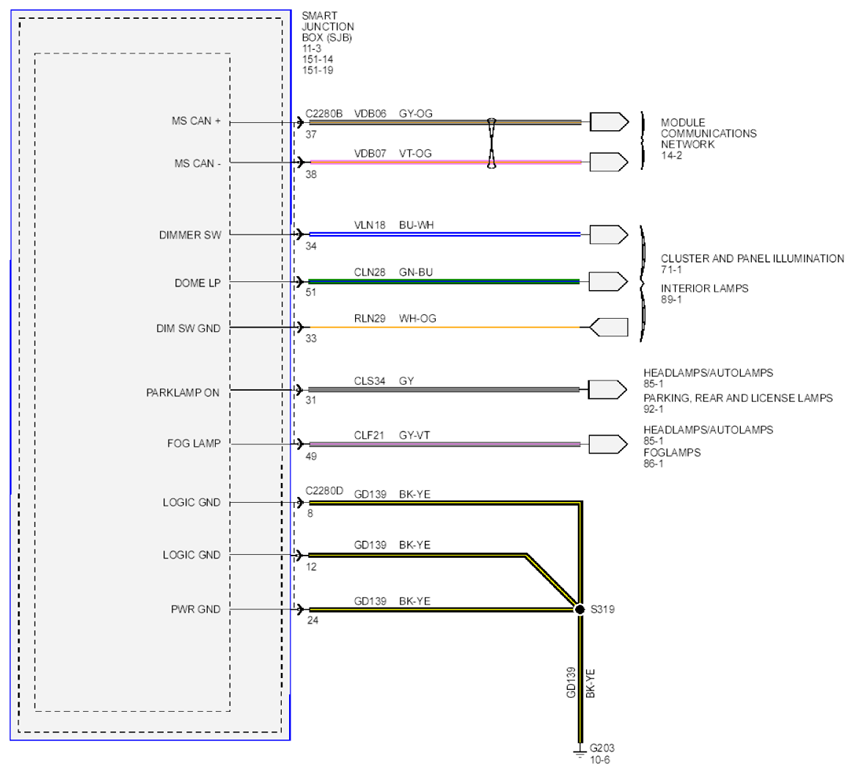

Fig 1: Power Distribution Circuit Diagram - F70 (1 Of 4)
Courtesy of FORD MOTOR CO.

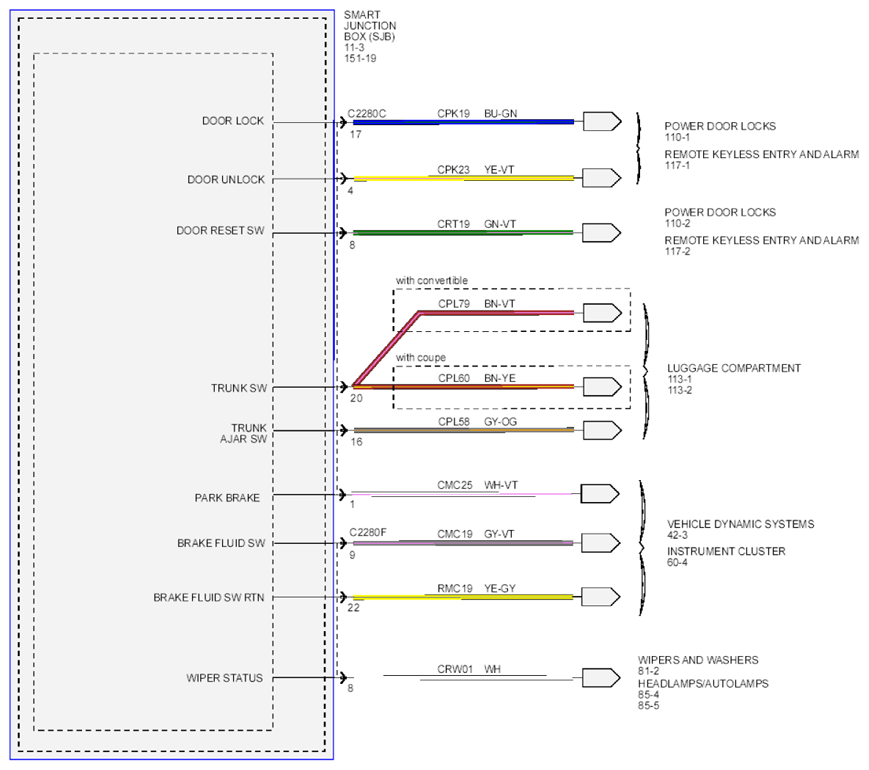

Fig 2: Power Distribution Circuit Diagram - F70 (2 Of 4)
Courtesy of FORD MOTOR CO.

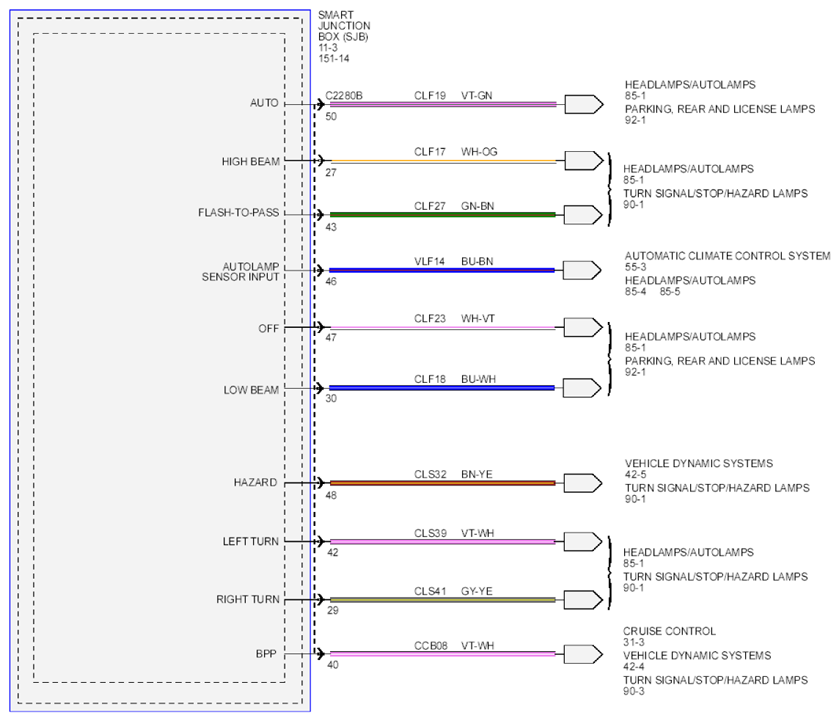

Fig 3: Power Distribution Circuit Diagram - F70 (3 Of 4)
Courtesy of FORD MOTOR CO.

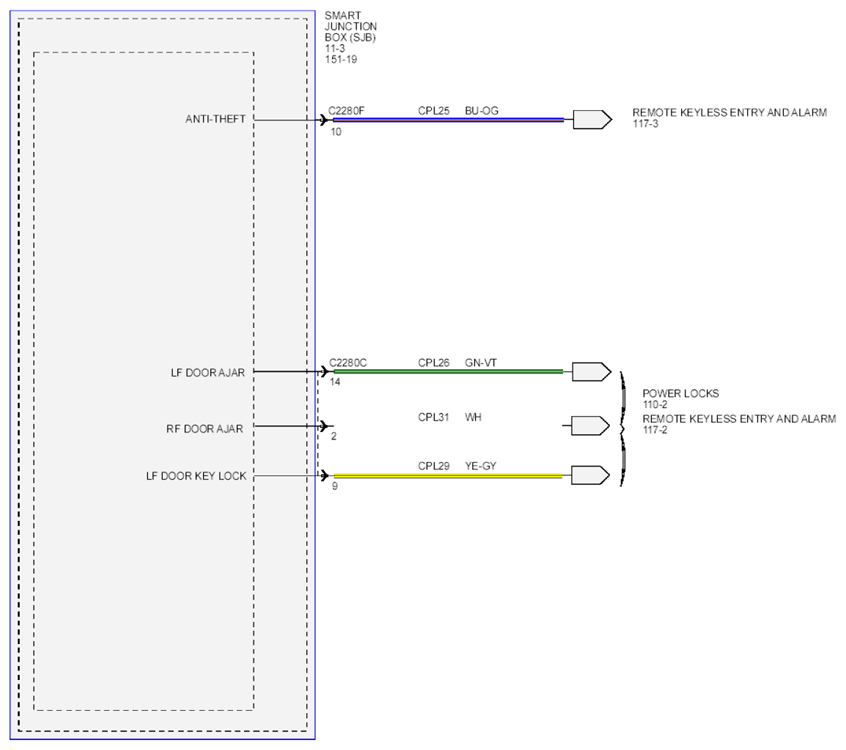

Fig 4: Power Distribution Circuit Diagram - F70 (4 Of 4)
Courtesy of FORD MOTOR CO.
