Power Distribution_SJB: 5.0L/5.4L

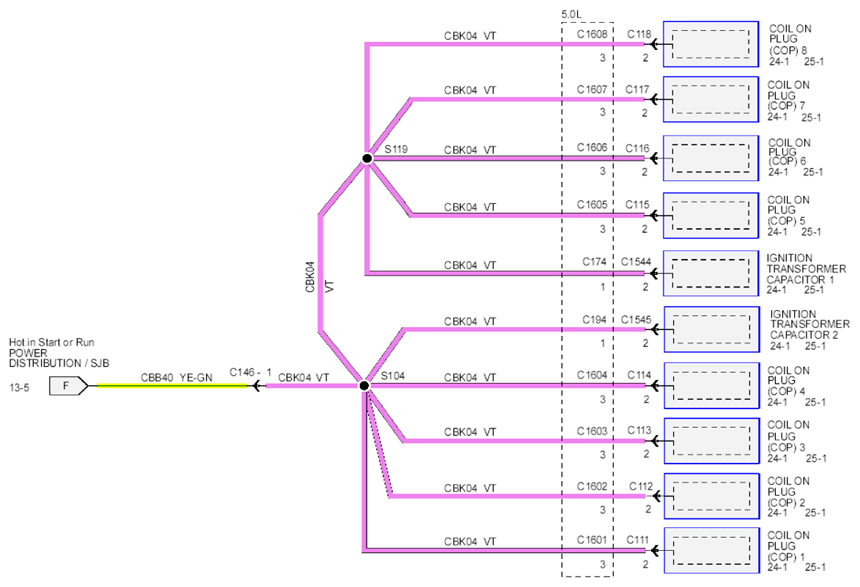

Fig 1: Power Distribution Circuit Diagram - 5.0L/5.4L (1 Of 2)
G07881096Courtesy of FORD MOTOR CO.

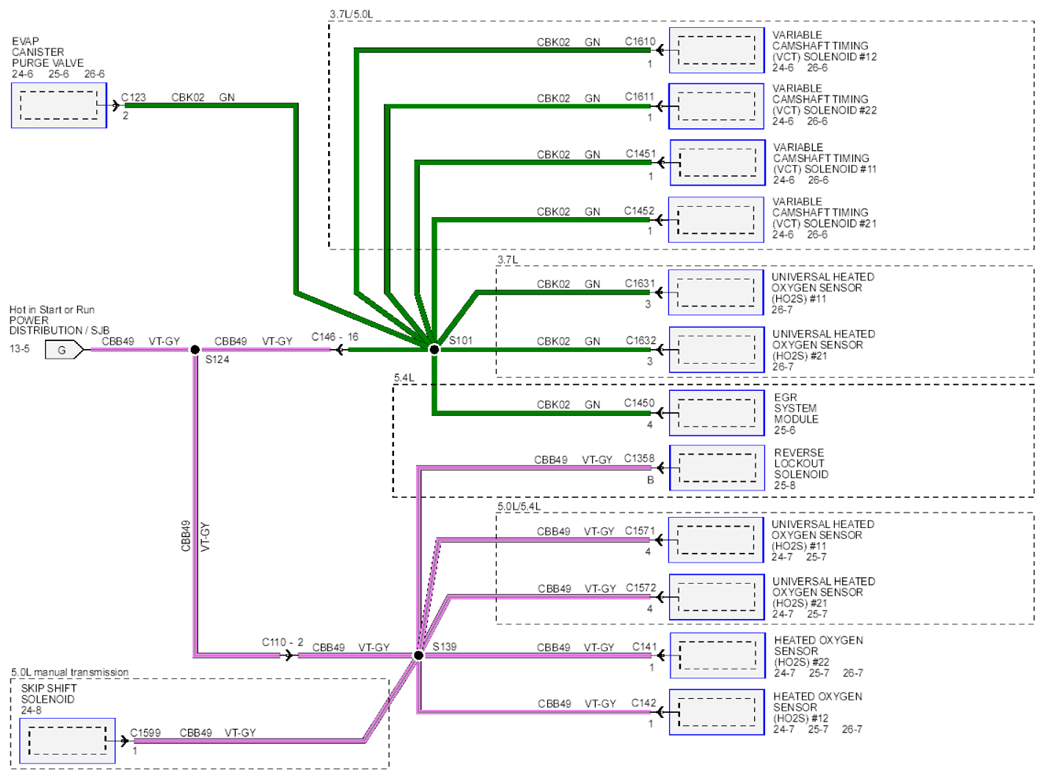

Fig 2: Power Distribution Circuit Diagram - 5.0L/5.4L (2 Of 2)
G07881097Courtesy of FORD MOTOR CO.
