Power Distribution_SJB: 3.7L

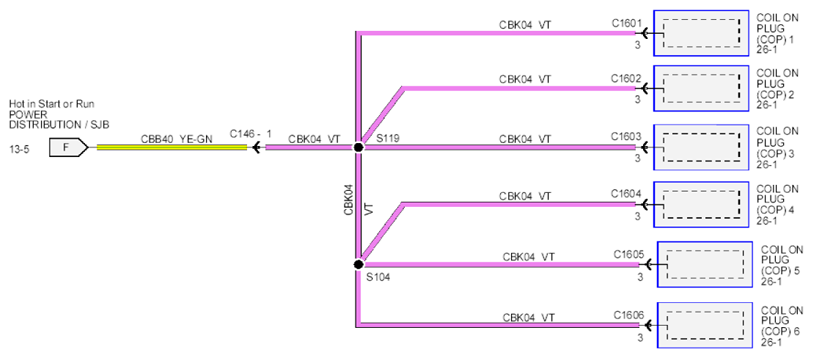

Fig 1: Power Distribution Circuit Diagram (3.7L)

G07881095

Courtesy of FORD MOTOR CO.
