Overhead Console: Convertible

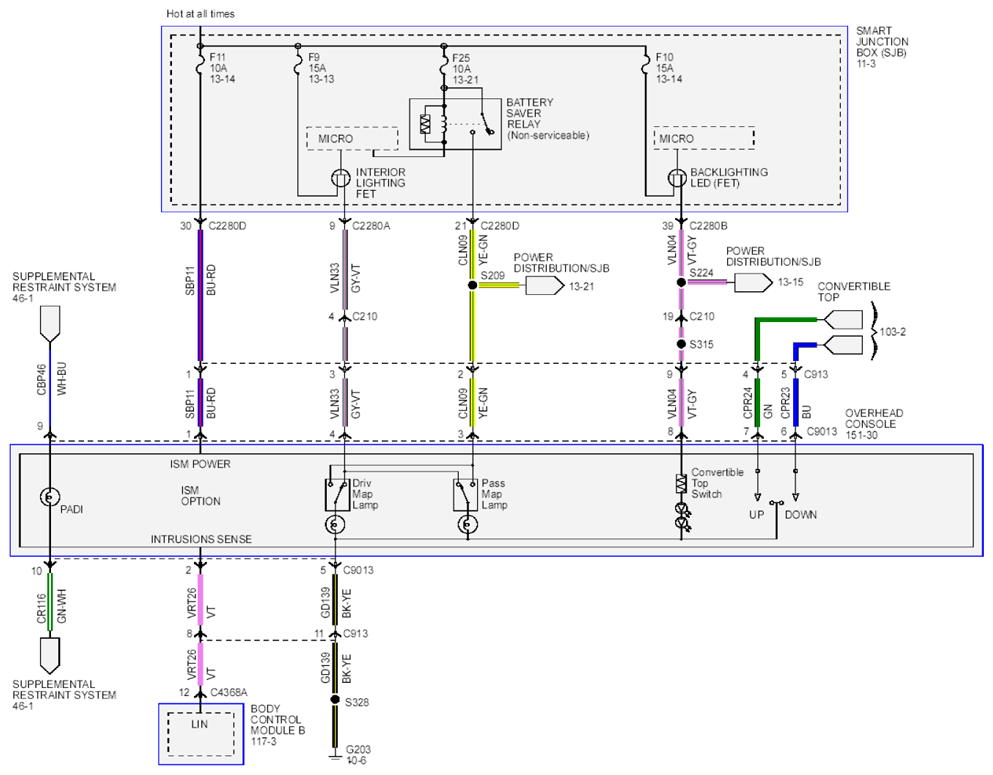

Fig 1: Overhead Console Circuit Diagram (Convertible)

G07881225

Courtesy of FORD MOTOR CO.
