Mustang Base, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Manual Climate Control System
Manual Climate Control System

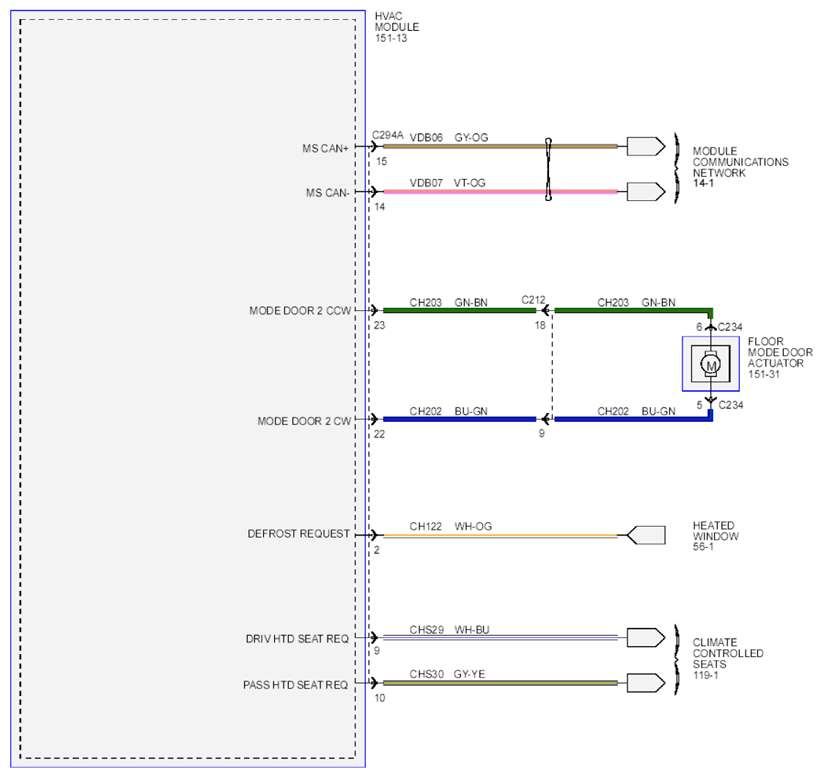

Fig 1: Manual Climate Control System Circuit Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

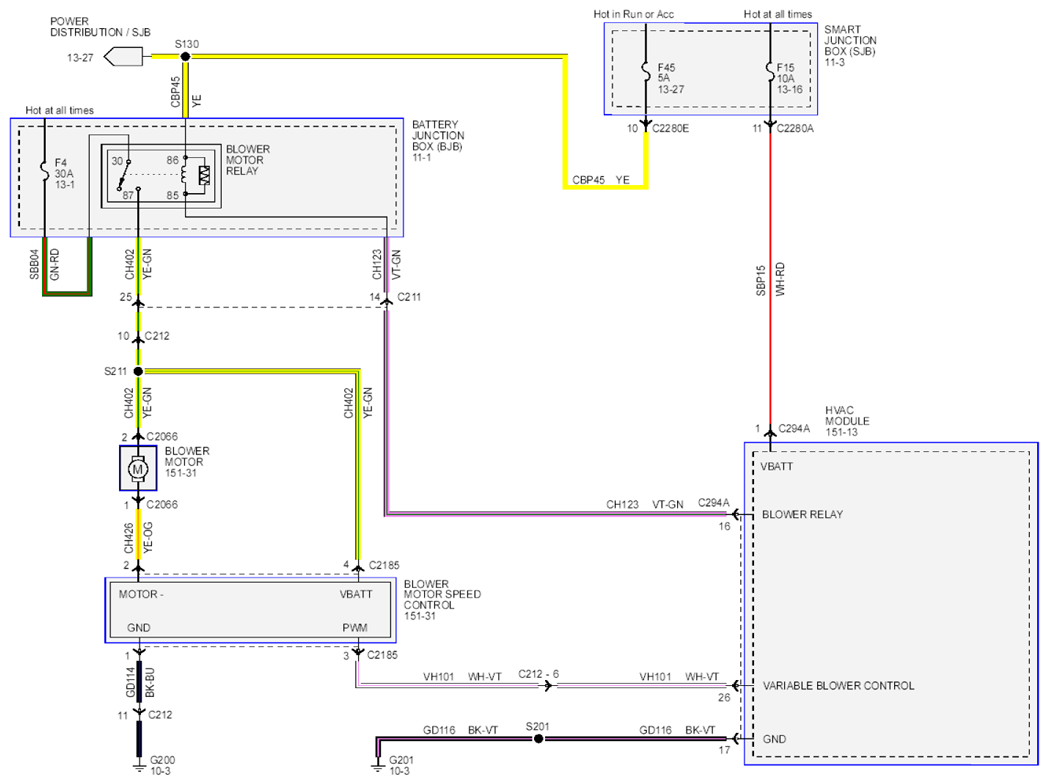

Fig 2: Manual Climate Control System Circuit Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

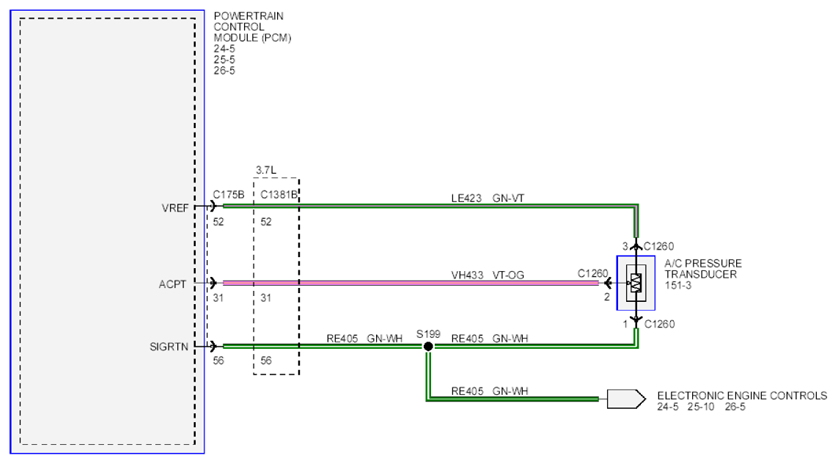

Fig 3: Manual Climate Control System Circuit Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

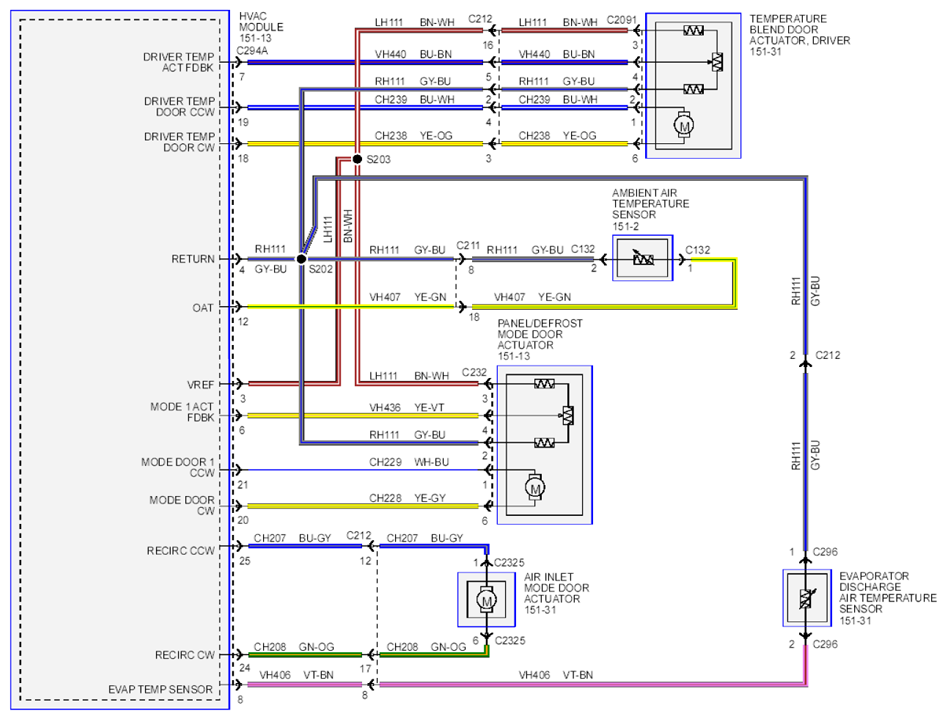

Fig 4: Manual Climate Control System Circuit Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

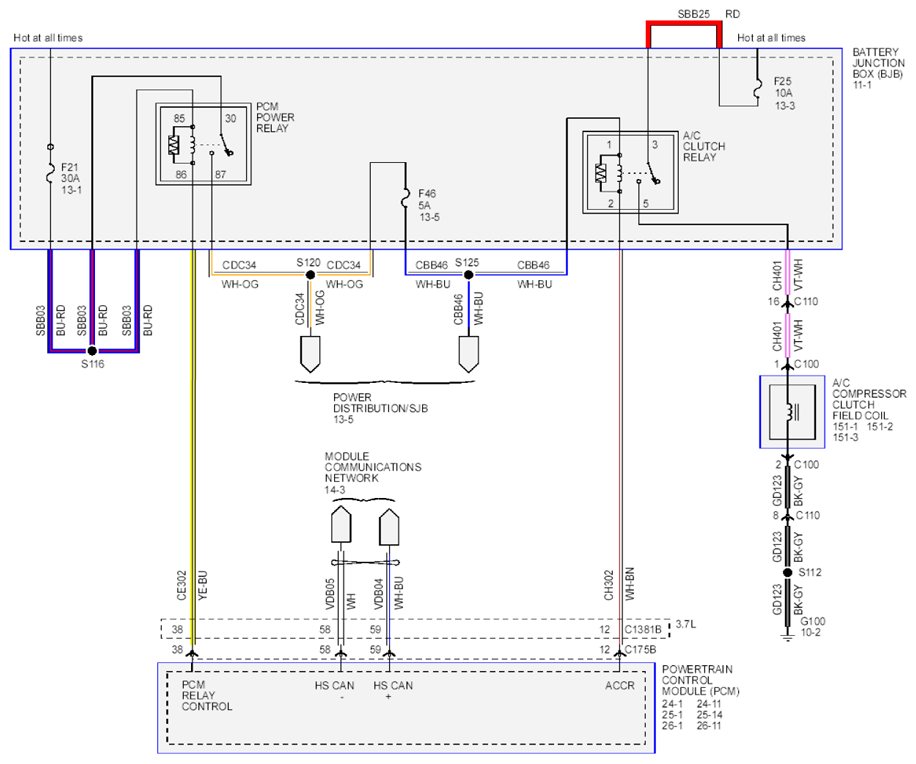

Fig 5: Manual Climate Control System Circuit Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
