Mustang Base, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Charging System
Charging System

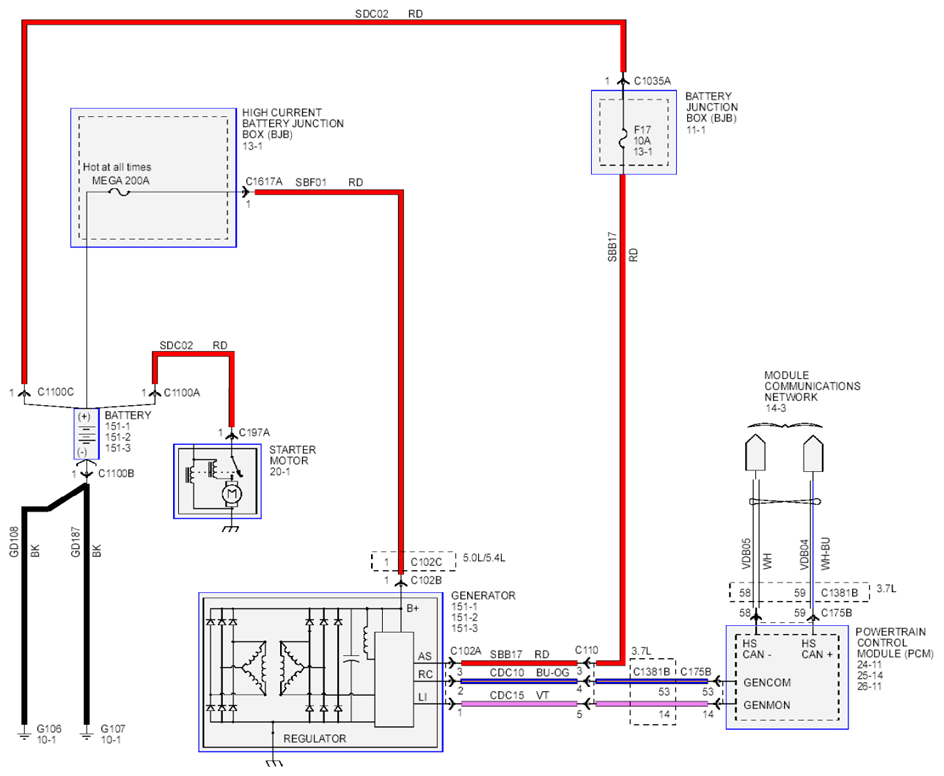

Fig 1: Charging System Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
