Mustang Base, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Automatic Climate Control System
Automatic Climate Control System

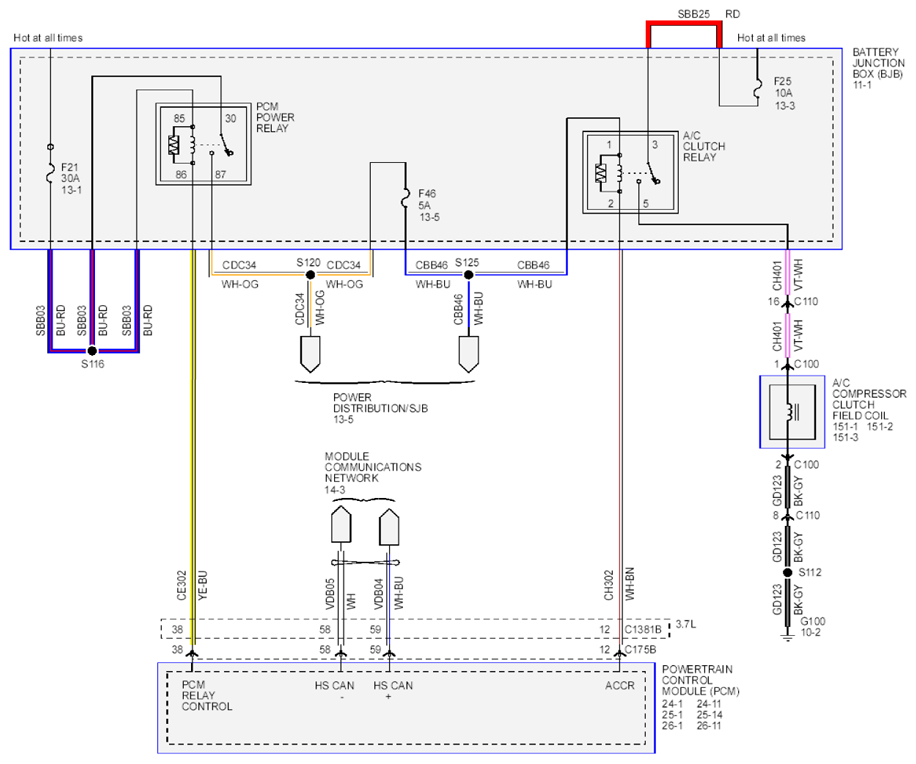

Fig 1: Automatic Climate Control System Circuit Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

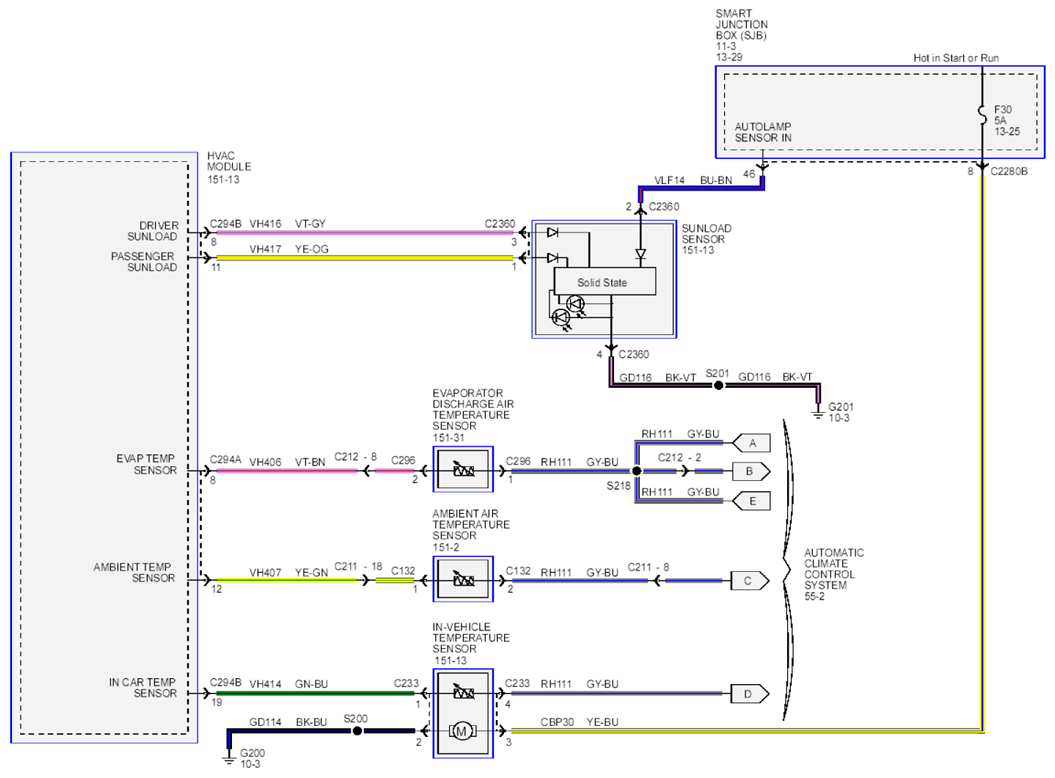

Fig 2: Automatic Climate Control System Circuit Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

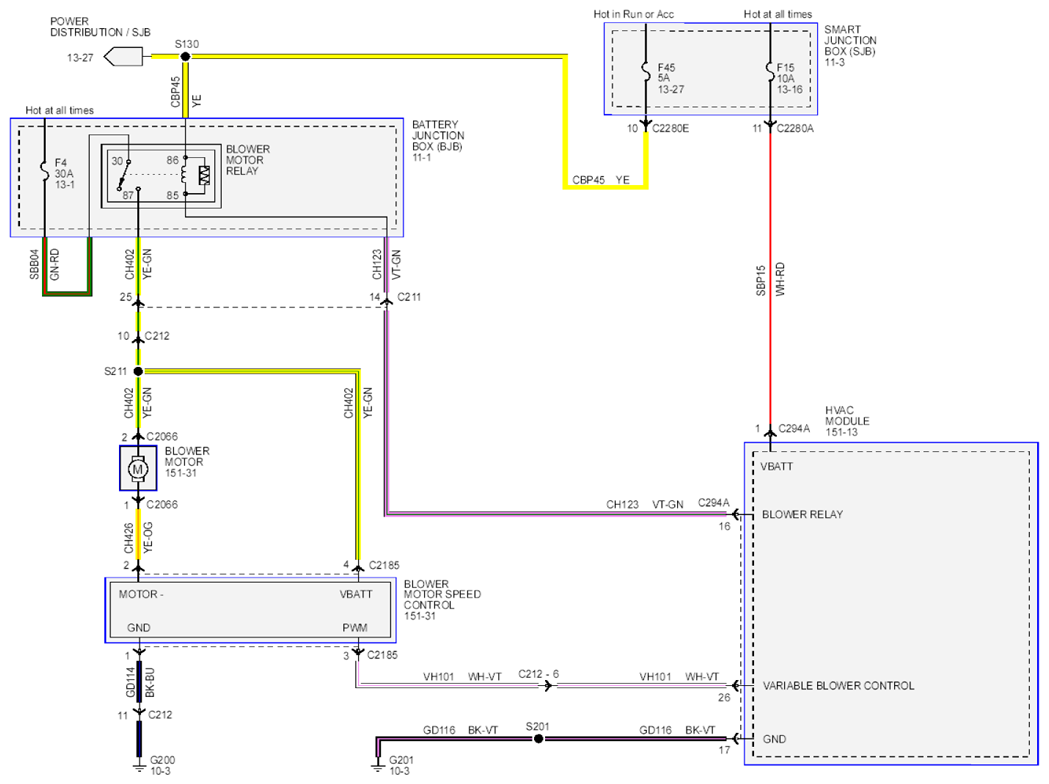

Fig 3: Automatic Climate Control System Circuit Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

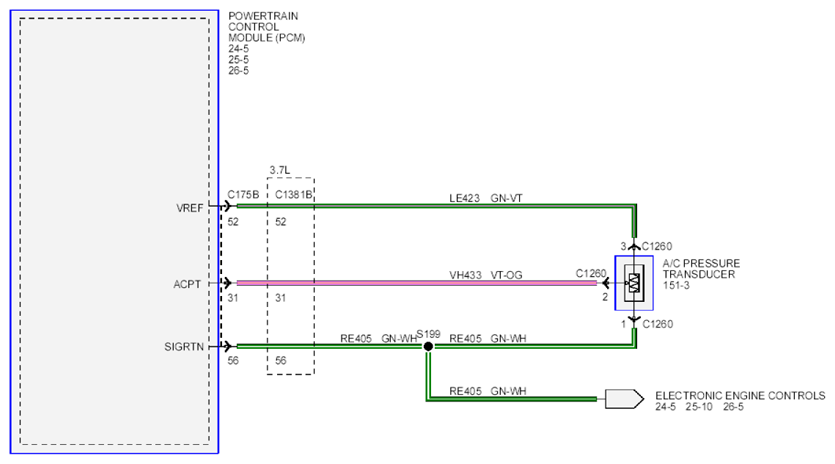

Fig 4: Automatic Climate Control System Circuit Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

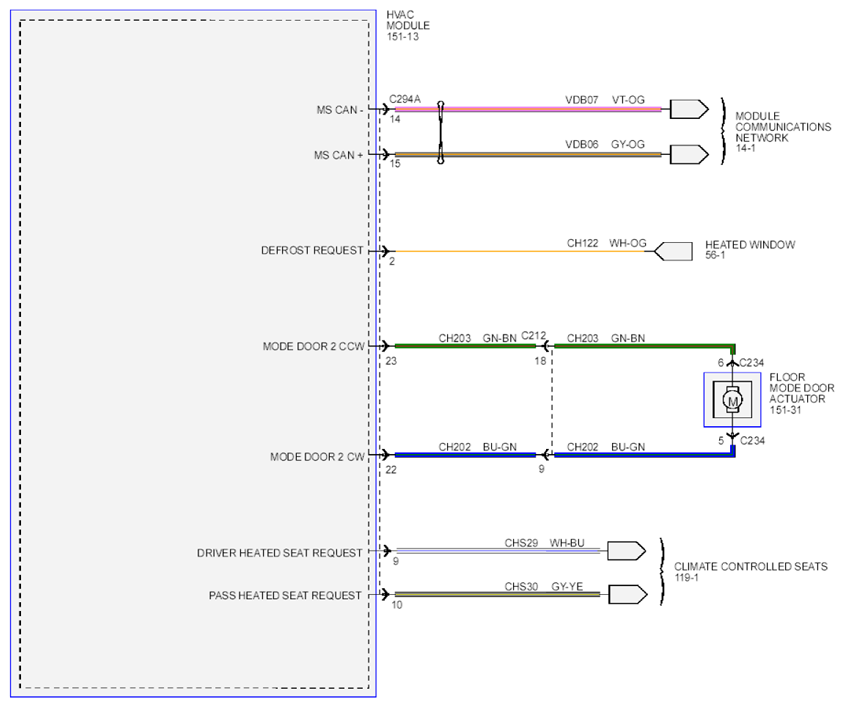

Fig 5: Automatic Climate Control System Circuit Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

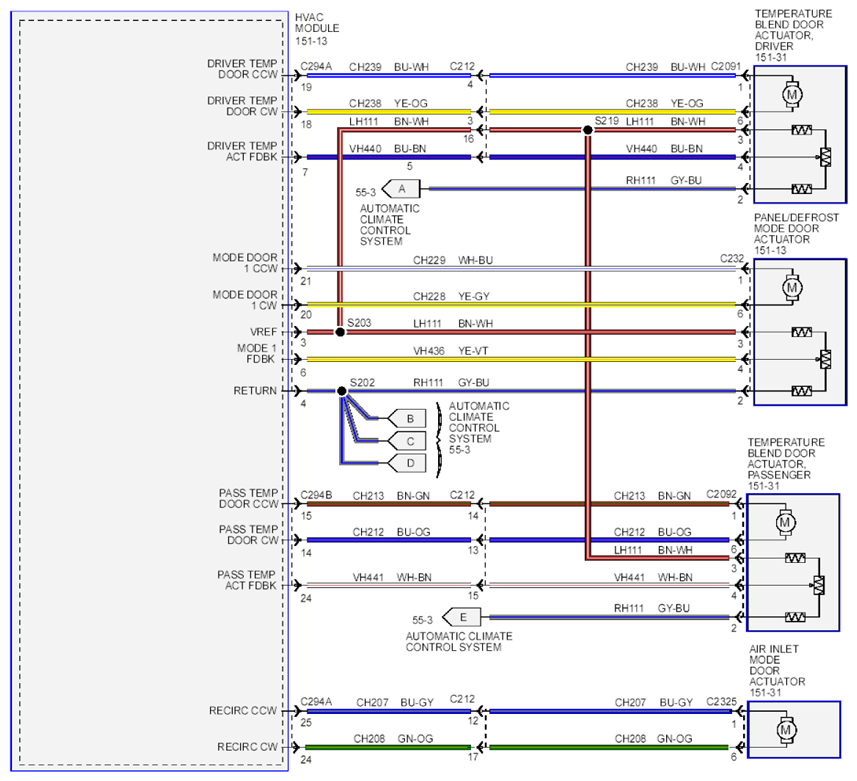

Fig 6: Automatic Climate Control System Circuit Diagram (6 Of 6)
Courtesy of FORD MOTOR CO.
