Audio System_Navigation: Sync

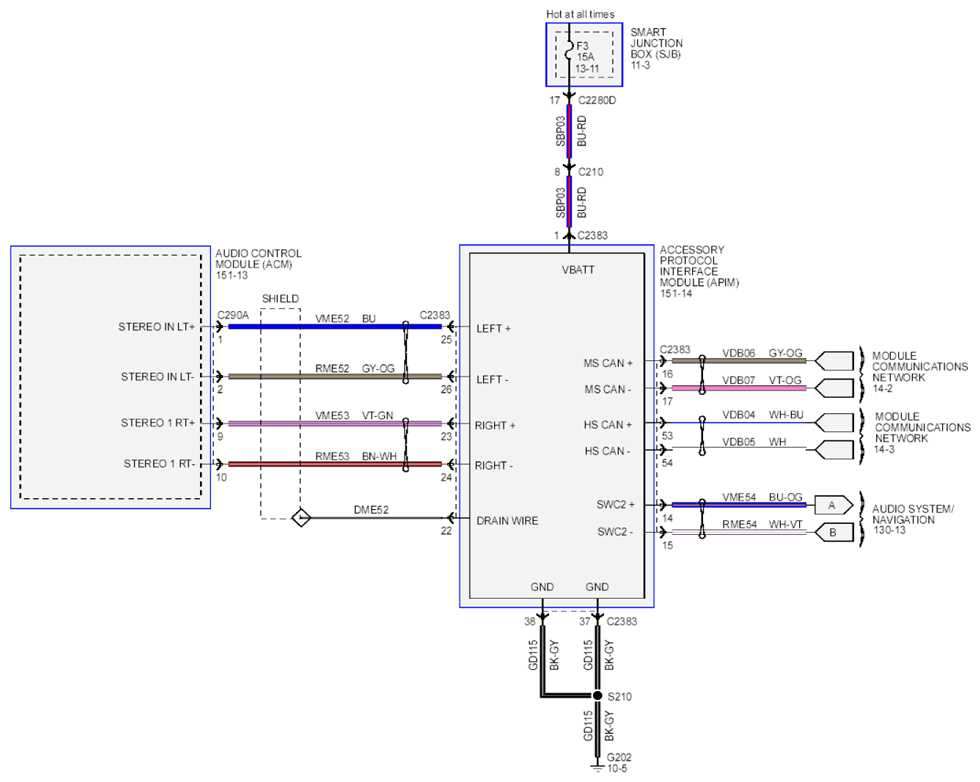

Fig 1: Sync Circuit Diagram (1 Of 4)
G07881248Courtesy of FORD MOTOR CO.

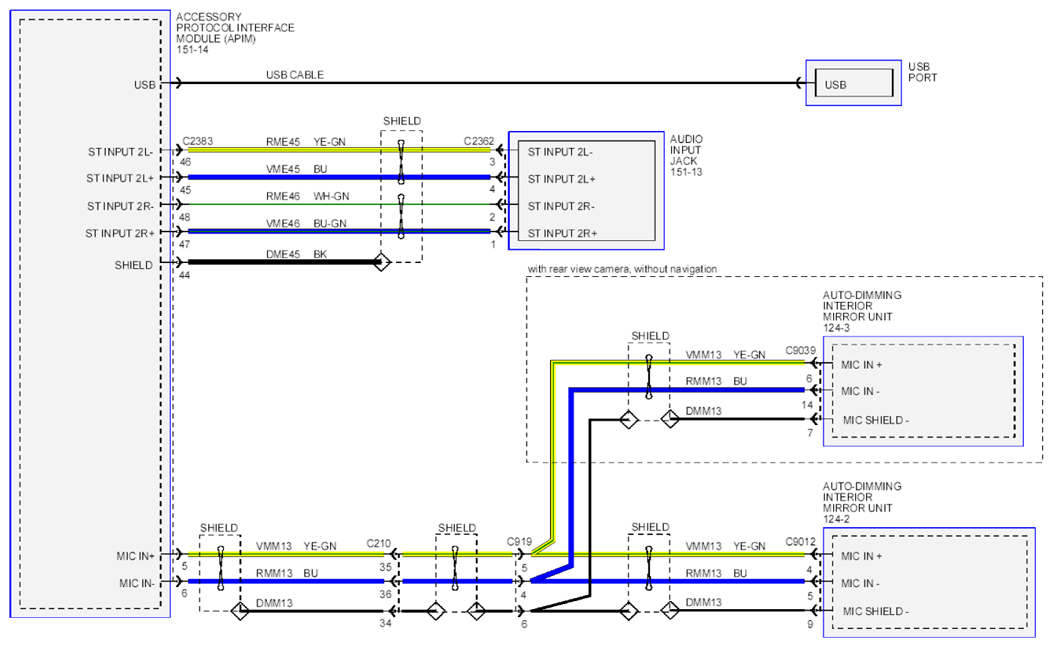

Fig 2: Sync Circuit Diagram (2 Of 4)
G07881249Courtesy of FORD MOTOR CO.

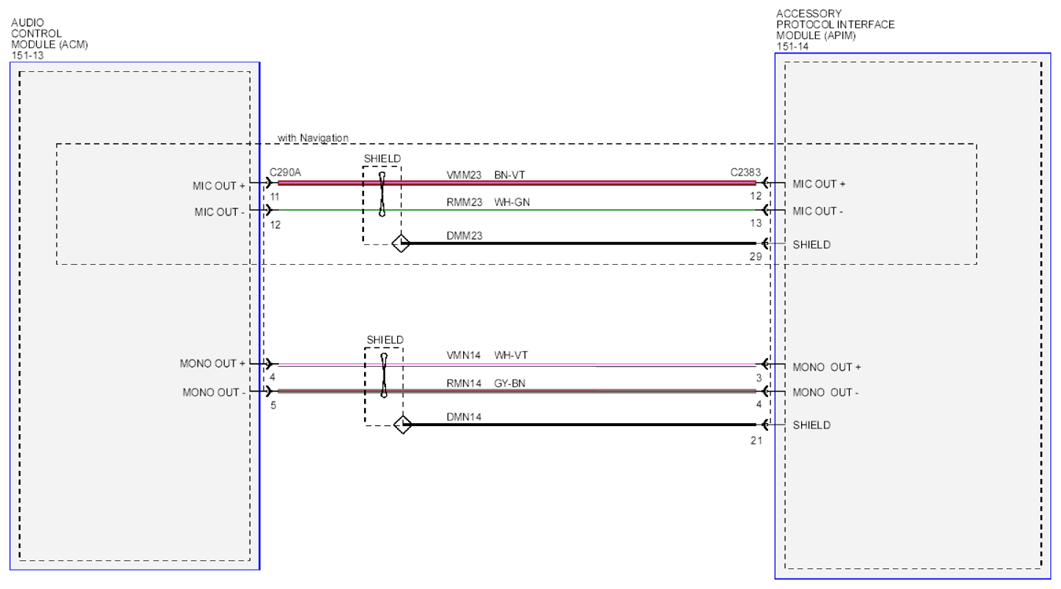

Fig 3: Sync Circuit Diagram (3 Of 4)
G07881250Courtesy of FORD MOTOR CO.

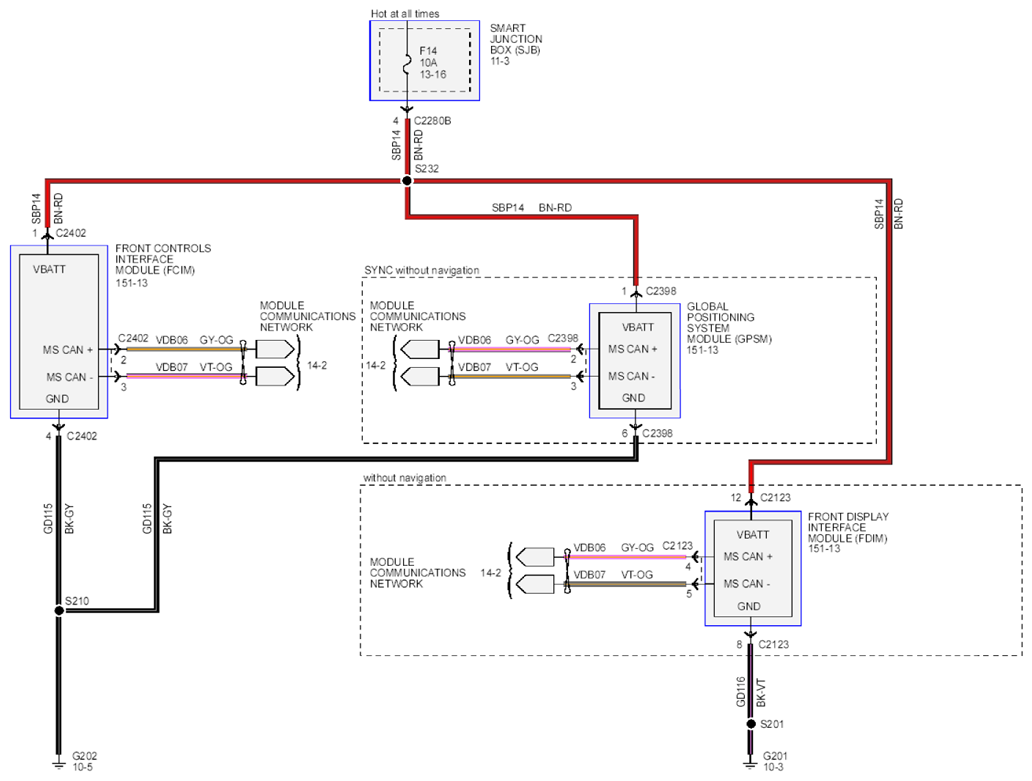

Fig 4: Sync Circuit Diagram (4 Of 4)
G07881251Courtesy of FORD MOTOR CO.
