Audio System_Navigation: Navigation

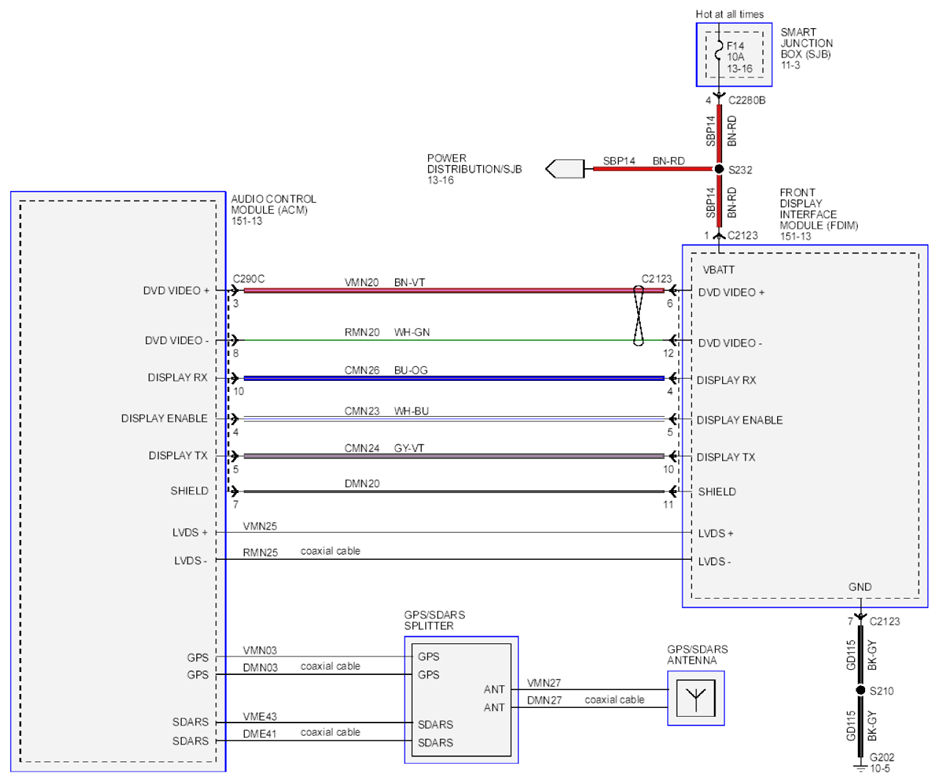

Fig 1: Navigation Circuit Diagram
G07881252Courtesy of FORD MOTOR CO.

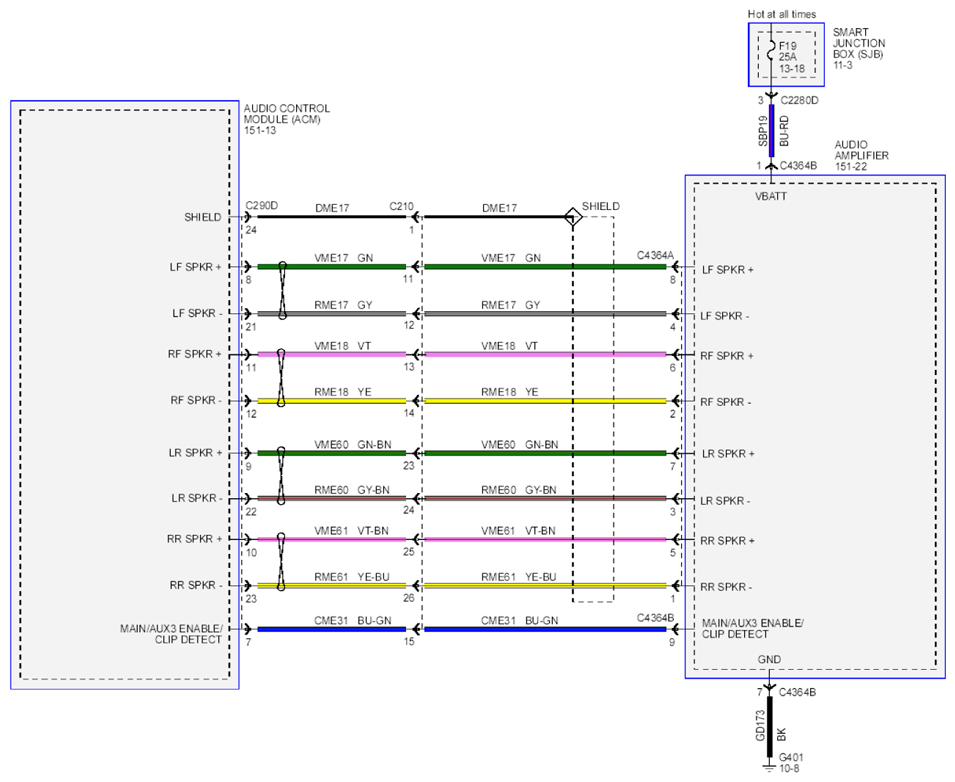

Fig 1: Navigation Circuit Diagram (1 Of 3)
G07881254Courtesy of FORD MOTOR CO.

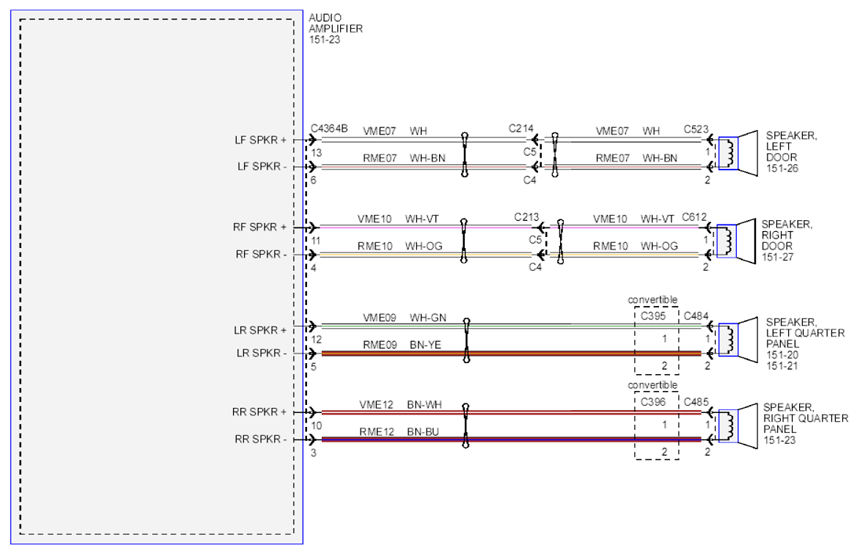

Fig 2: Navigation Circuit Diagram (2 Of 3)
G07881255Courtesy of FORD MOTOR CO.

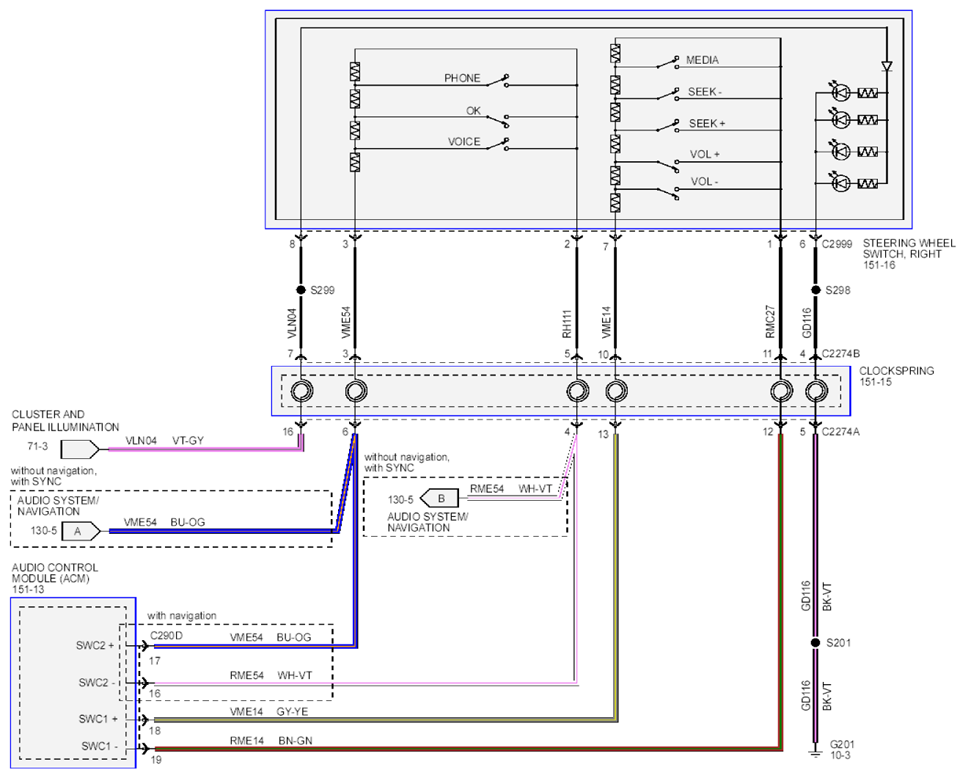

Fig 3: Navigation Circuit Diagram (3 Of 3)
G07881256Courtesy of FORD MOTOR CO.
