Navigation With Rear Video Camera
Navigation With Rear Video Camera

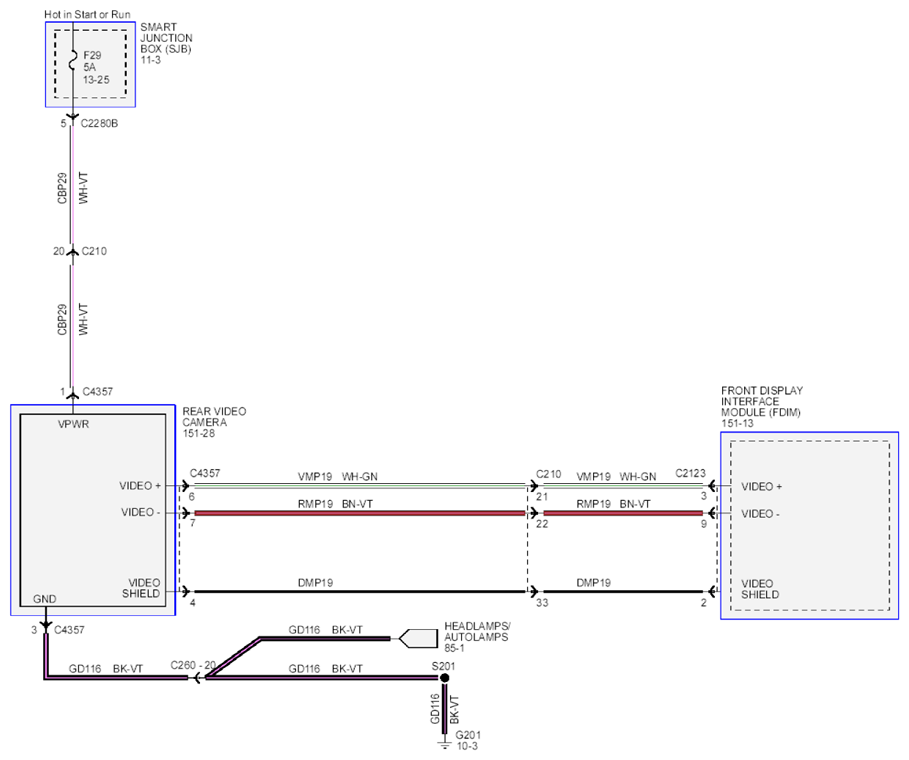

Fig 1: Navigation With Rear Video Camera Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
