Heated Seat Relay Box

NOTE: For component location, see OEM COMPONENT LOCATIONS article.

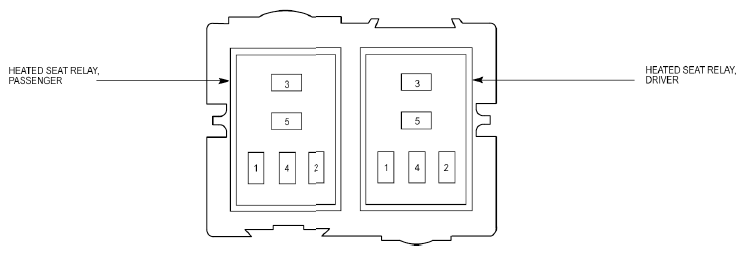

Fig 1: Heated Seat Relay Box

Courtesy of FORD MOTOR CO.

HEATED SEAT RELAY BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
Heated Seat Relay, Passenger
Heated Seat Relay, Driver
