Clutch Master Cylinder: Notes
MATERIAL
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

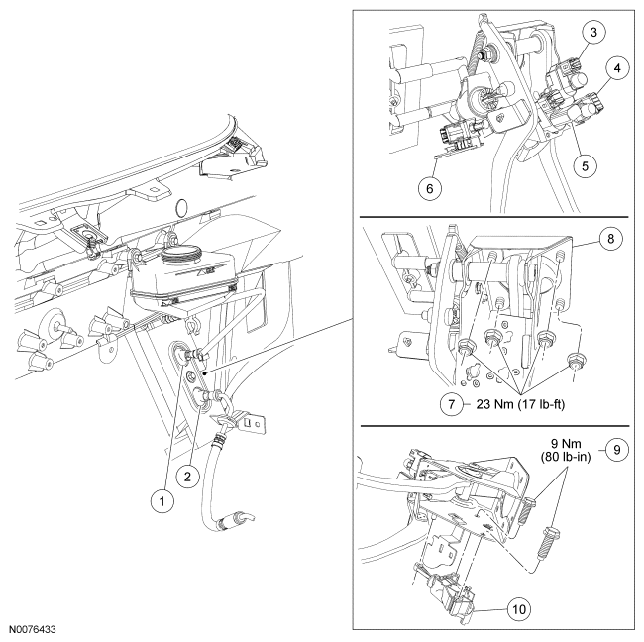

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Upper hydraulic tube |
| 2 | - | Lower hydraulic tube |
| 3 | - | Speed control deactivation switch |
| 4 | - | Stoplamp switch |
| 5 | - | Starter safety switch |
| 6 | 11A152 | Clutch Pedal Position (CPP) switch |
| 7 | - | Clutch pedal assembly nuts (4 required) |
| 8 | 7A564 | Clutch pedal assembly |
| 9 | - | Clutch master cylinder bolts (2 required) |
| 10 | 7A543 | Clutch master cylinder |
