Home
>>
Ford
>>
2011
>>
Focus SES, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector Views
>>
Passive Anti-Theft Transceiver Module Connector - C252
Passive Anti-Theft Transceiver Module Connector - C252

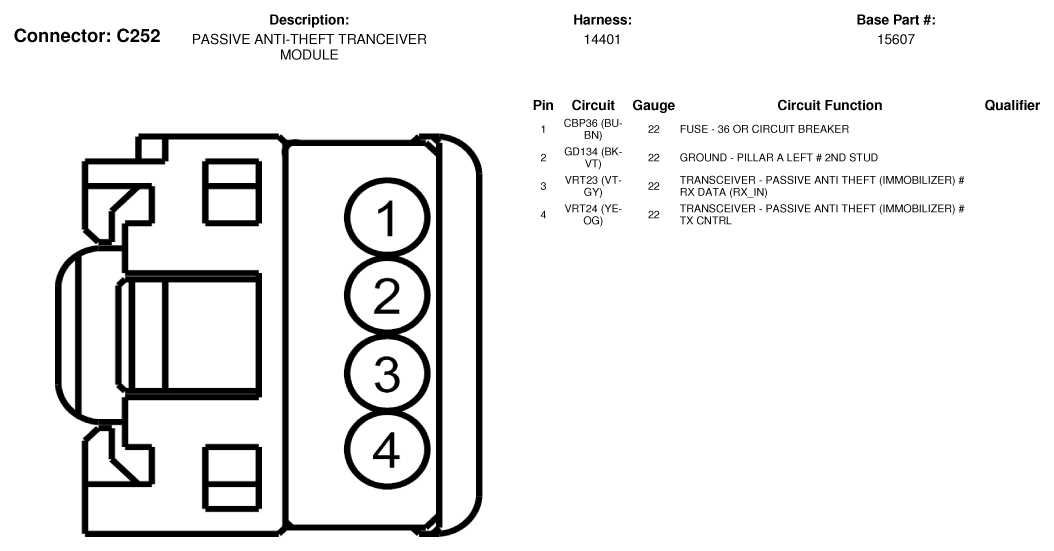

Fig 1: Passive Anti-Theft Transceiver Module Connector End View (C252)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
