Smart Junction Box (SJB): Notes

SPECIAL TOOL(S)

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

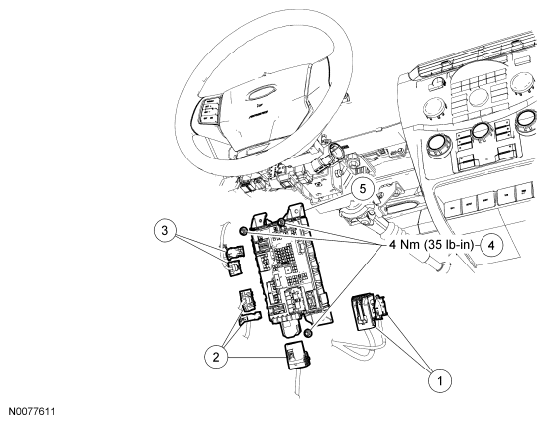

Fig 1: Exploded View Of Smart Junction Box (SJB) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Electrical connectors (part of 14A005)
2	-	Electrical connectors (part of 14290)
3	-	Electrical connectors (part of 14401)
4	W701152-S	Smart Junction Box (SJB) nuts (3 required)
5	15604	SJB
