Tie Rod - Outer: Notes
SPECIAL TOOL(S)
|
|
Remover, Tie-Rod End
211-001 (Tool-3290-D) |
NOTE:

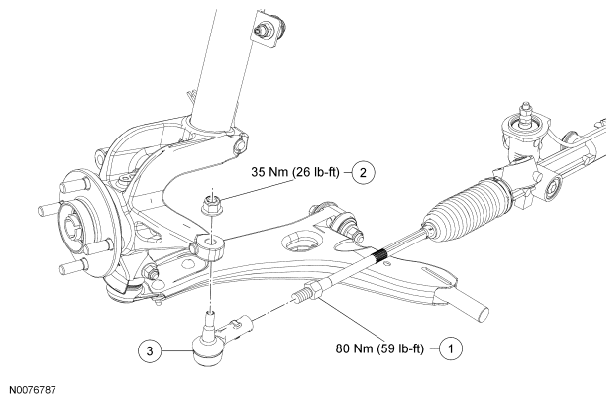

Vehicles with 15- and 16-inch wheels shown in the illustration.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W713882 |
Tie-rod jam nut |
| 2 |
W520203 |
Outer tie-rod end nut |
| 3 |
3A130 |
Outer tie-rod end |
