Flexplate Inspection

  1. Inspect the flexplate for:
    1. any cracks.
    2. worn ring gear teeth.
    3. chipped or cracked ring gear teeth.

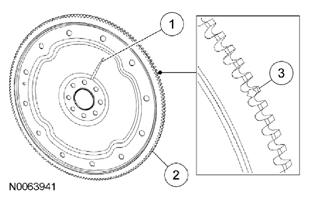

    Fig 1: Flexplate Inspection Areas
    G07802765Courtesy of FORD MOTOR CO.
