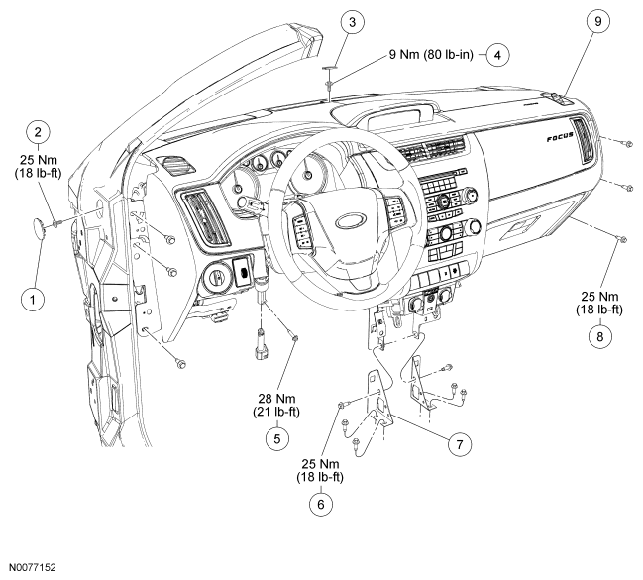

Instrument Panel Mounting Fasteners
| Item | Part Number | Description |
|---|---|---|
| 1 | - | LH instrument panel side bolt cover (part of 5985) |
| 2 | W710090 | LH instrument panel side bolt |
| 3 | 044F58 | Instrument panel upper cowl bolt cover |
| 4 | W707491 | Instrument panel upper cowl bolt |
| 5 | 706229 | Upper steering column shaft-to-lower steering column shaft bolt |
| 6 | W710090 | Instrument panel support bracket bolt (6 required) |
| 7 | 044C52 | Instrument panel support bracket |
| 8 | W710090 | Instrument panel bolt (6 required) |
| 9 | 04320 | Instrument panel |
- For additional information, refer to the appropriate procedure.
